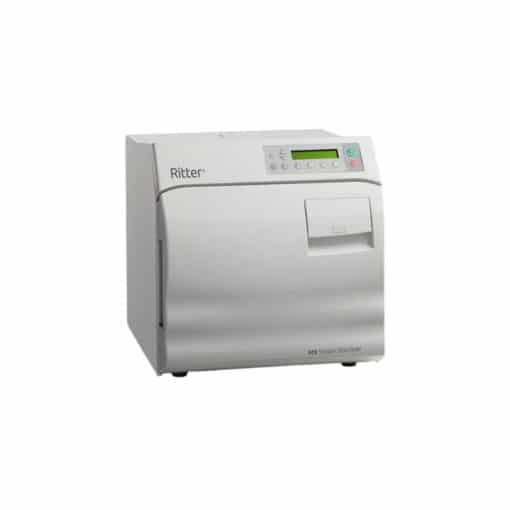

Product Description Refurbished Midmark Ritter M9 Ultraclave, Current Model WARRANTY: 6 month parts & labor Sterilization is made easy by the Midmark Ritter M9 Autoclave. Simply press the Start/Standby button and this autoclave will fill itself with the appropriate amount of water automatically. Once the autoclave is filled with water, select your cycle and the M9 will set the time for you. Cycle time from start to finish is 22 minutes (if cold) and 12 minutes (if hot). Features Low water indicator light tells you when the reservoir level is too low A door-ajar light tells you if the door is not securely closed LED display shows the units temperature during heat-up and time remaining during cycles. Lights turn on progressively during filling, heating, sterilizing, drying and complete stages. Easy to fill and to drain water located at the front of the machine A large capacity water reservoir means you fill it less often! Four stainless steel trays come with the unit (two large, two small) Easy-to-read pressure gauge and electronic controls offer simple operation and reduce down time Technical Specifications Chamber Size: 9 x 15 Volume: 3.5 gal (13.4 L) Dimensions (L x W x H): 20.4 x 15.3 x 15.38 Trays: 4 Tray Size (L x W x H): Two Large: 7.3 W x 12 L x 0.8 D & Two Small: 5.6 W x 12 L x 0.8 D Standard Unwrapped Cycle Time: Cold: 30 Min & Hot: 14 min Voltage: 115V Frequency: 50/60 Current: 15A Shipping Weight: 81 lbs Minimum Countertop Area: 15.3 W x 17.9 D Sterilization Programs Temp. Hot Cycle Time (fill, heat-up & vent) Sterilization Time Dry Time Total Hot Cycle Time (without dry) Total Hot Cycle Time (with dry) Description Icon Unwrapped 270 F 11 min 3 min 30 min 14 min 44 min Pouches 270 F 12 min 5 min 30 min 17 min 47 min Packs 250 F 10 min 30 min 30 min 40 min 70 min Handpieces 270 F 11 min 6 min 30 min 17 min 47 min
Технические характеристики
Technical Specifications
- Chamber Size: 9′ x 15′
- Volume: 3.5 gal (13.4 L)
- Dimensions (L x W x H): 20.4′ x 15.3′ x 15.38′
- Trays: 4
- Tray Size (L x W x H): Two Large: 7.3′ W x 12′ L x 0.8′ D & Two Small: 5.6′ W x 12′ L x 0.8′ D
- Standard Unwrapped Cycle Time: Cold: 30 Min & Hot: 14 min
- Voltage: 115V
- Frequency: 50/60
- Current: 15A
- Shipping Weight: 81 lbs
- Minimum Countertop Area: 15.3′ W x 17.9′ D
| Sterilization Programs | Temp. | Hot Cycle Time (fill, heat-up & vent) | Sterilization Time | Dry Time | Total Hot Cycle Time (without dry) | Total Hot Cycle Time (with dry) | |
| Description | Icon | ||||||
| Unwrapped | 270° F | 11 min | 3 min | 30 min | 14 min | 44 min | |
| Pouches | 270° F | 12 min | 5 min | 30 min | 17 min | 47 min | |
| Packs | 250° F | 10 min | 30 min | 30 min | 40 min | 70 min | |
| Handpieces | 270° F | 11 min | 6 min | 30 min | 17 min | 47 min |
