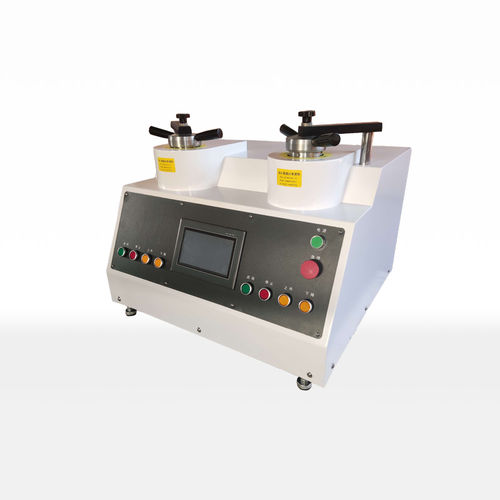

ZXQ-5S automatic mosaic machine is a duplex full-automatic metallographic sample mosaic machine, which has the function of inlet and outlet water cooling, and is suitable for thermal mosaic of all materials (thermosetting and thermoplastic). Dual station, independent control, touch screen display and setting. After setting the heating temperature, holding time, force and other inlay parameters, put in the sample and inlay material, cover the gland, and press the work button to automatically complete the inlay without the operator on duty next to the machine. According to the samples with different requirements, the molds of 4 specifications can be replaced at any station, or two samples can be pressed at the same station at the same time, and the preparation capacity has doubled. It is one of the necessary equipment in metallographic laboratory. technical parameter 1. Double stations, mold specification of each station: φ 25mm φ 30mm φ 40mm φ 50mm 2. Power supply: 220V 50Hz 3. Maximum power consumption: 3200W 4. System pressure setting range: 0 ~ 2MPa (corresponding sample preparation pressure range: 0 ~ 72mpa) 5. Temperature setting range: room temperature ~ 180 ℃ 6. Setting range of holding time: 0 ~ 99 minutes and 99 seconds 7. Cooling mode: water cooling 8. Overall dimension: 640mmx700mmx530mm 9. Weight: 180kg Equipped with main accessories 1. One set of 25mm, 30mm, 40mm and 50mm diameter molds (including upper, middle and lower molds and inlay sets) 2. One set of oiler 3. 500g mosaic powder 4. A plastic funnel 5. One oil pointer 6. A wrench 7. One inlet pipe and one return pipe respectively
Технические характеристики
CharacteristicsOther characteristicsautomatic, for metallographic samples, hydraulic
