Технические характеристики

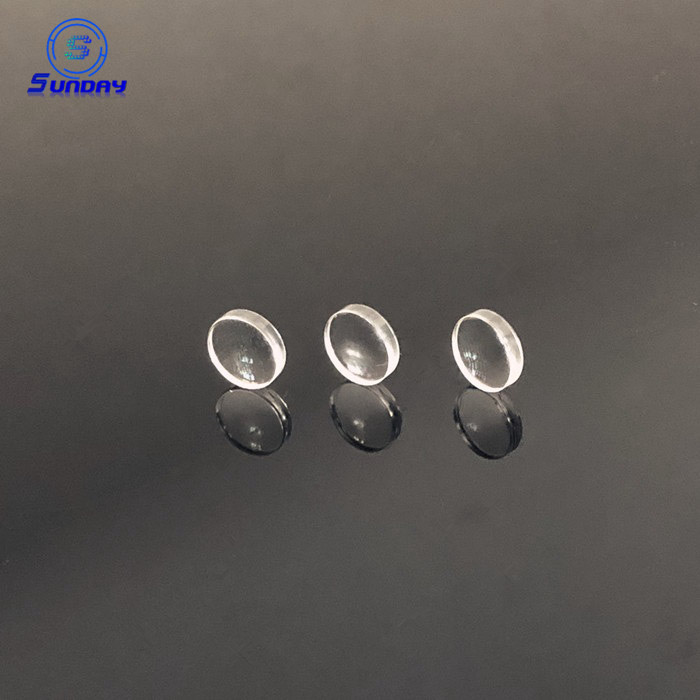

These small aspheric lens are widely used for laser collimator, focus,etc.
| Part NO | Dia(mm) | EFL(mm) | CT(mm) | CA(mm) | NA | Material | WL(nm) |
| SDXR3A6Y | 3 | 6 | 1.5 | 2.1/2.4 | 0.2 | D-ZK3 | 400-700nm |
| SDXR3A2C | 3 | 2 | 1.87 | 2.15/1.55 | 0.54 | D-ZK3 | 400пЅћ1050nm/600-1050nm |
| SJXR30383 | 3 | 3.8 | 1.5 | 2.3 | 0.3 | D-ZK3 | 650nm |
| SDX4A433C | 4 | 4.33 | 2 | 4.2/3.47 | 0.48 | D-ZLaF52La | 635nm |
| SDXR4A71 | 4 | 7.1 | 2.2 | 3.65/3.15 | 0.26 | D-ZK3 | 400-700nm |
| SDX47A8C | 4.7 | 8 | 2.9 | 4.0/3.29 | 0.25 | D-ZK3 | 420-680nm |
| SJLT476226 | 4.7 | 6.2 | 3.484 | 3.7/2.55 | 0.3 | D-ZK3 | 420-680nm |
| SD598A12A | 5.98 | 12 | 1.95 | 5.3/4.9 | 0.22 | D-ZK3 | 400-700nm |
| SDXR6A10C | 6 | 10 | 2 | 5.0/4.58 | 0.25 | D-ZK3 | 400-700nm,600-850nm |
| SD6AR991C | 6 | 9.91 | 2 | 5.0/4.57 | 0.25 | D-ZK3 | 420-660nm |
| SD6AR12C | 6 | 12 | 2.5 | 5.5/4.93 | 0.23 | D-ZK3 | 400-700nm |
| SDXR633405-A | 6.33 | 4.02 | 3.3 | 5.1 | 0.6 | D-ZK3 | 400-700nm,700-1100nm |
| SDXR633405-B | 6.33 | 4.02 | 3.1 | 3.2/2.09 | 0.4 | D-ZK3 | 400-700nm |
| SDXR633A8 | 6.33 | 8 | 1.91 | 5.3/4.87 | 0.33 | D-ZK3 | 400-700nm |
| SDXR85A15 | 8.5 | 15 | 2.5 | 8.0/7.48 | 0.27 | D-ZK3 | 400-700nm |
| SD10A19C | 10 | 19 | 3.14 | 8.16/8.8 | 0.23 | D-ZK3 | 915nm |
