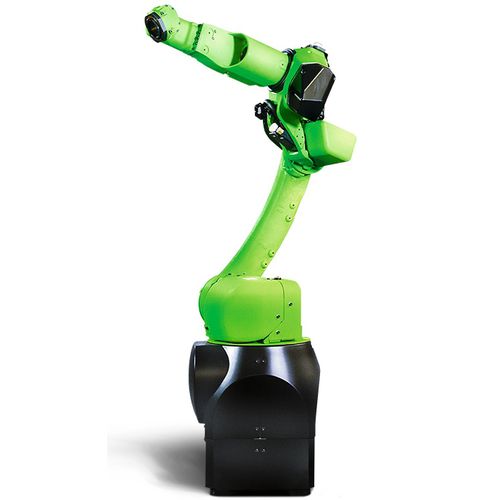

Capable of lifting 15 kg, I’m a powerful collaborative robot that nicely fills the gap between my smaller CR-4iA and CR-7iA siblings and my big brother the CR-35iA. Just like the rest of my family, I rely on proven FANUC technology and a highly-sensitive sensor built into my base. As a result, I’m not only extremely reliable but also an incredibly safe high-performer that can work with or alongside humans on a range of industrial applications such as handling, machine tending, inspection and logistics. I use reliable sensor technology Unlike other collaborative robots that use multiple external sensors, I keep humans safe using a single FANUC Force Sensor built into my base. This makes me incredibly robust and reliable – something my human colleagues really appreciate on jobs where downtime just isn’t an option. I’m easy to teach Teaching me is just like teaching any other FANUC robot and can be done easily using the FANUC Teach Pendant or offline device. Using optional FANUC Hand Guidance, you can even program me by leading me through the motion points or trajectory necessary to complete the task and recording the path. I can recognise objects Depending on your needs, I can be equipped with a FANUC Vision Sensor or a FANUC 3D Area Sensor, which enables me to locate or envision workpieces.
Технические характеристики
CharacteristicsTypearticulated, collaborativeNumber of axes6-axisFunctionhandling, machine tendingMountingfloor-mounted, ceiling-mountProtection levelIP54, IP67Payload
15 kg (33.069 lb)
Reach
1,441 mm (56.73 in)
Repeatability
0.02 mm (0.0008 in)
Operating temperature
Max.: 45 °C (113 °F)
Min.: 0 °C (32 °F)
Noise level
70 dB
Weight
255 kg (562.2 lb)
