| Order No.: | Kit Description: | Product Image: | Number of Items: | Kit Components: |
|---|
| Order No.: |
|---|

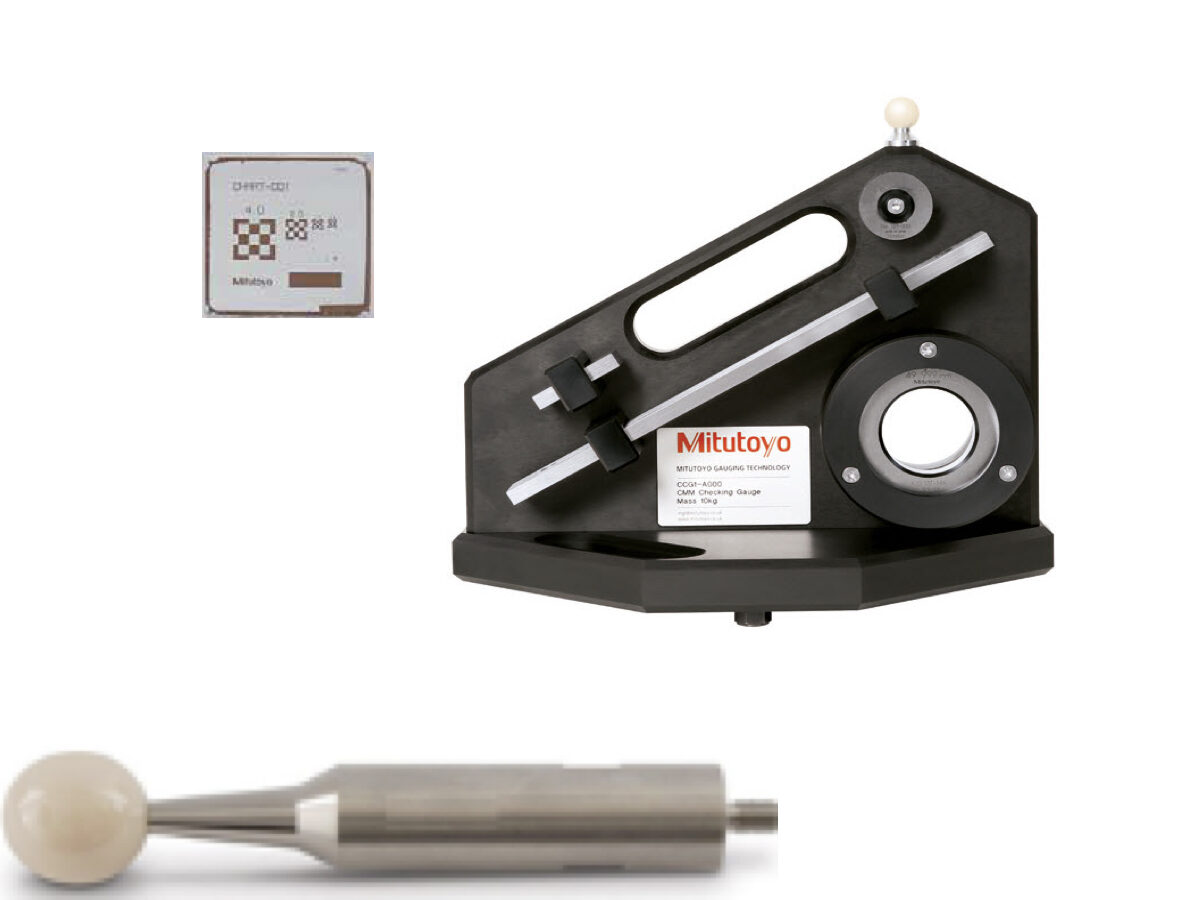

| 02AKN020 | Calibration Chart | — | 1 | Used in conjunction with the Quick Vision Probe (QVP) for pixel calibration.
|
| 06ABM944 | Ø20mm Masterball | — | 1 | Used for CMM probe stylus verification.
|
| 515-763 | Check Master 0-1000mm | — | 1 | High Accuracy Ceramic Block, ±2.5 µm Accuracy, 1.5 µm Parallelism. Each measuring block is made of zirconia-based ceramic that requires no anti-corrosion treatment for measuring faces.
|
| 63AAA322 | CMM Verification Artifact | — | 1 | Consisting of highly accurate length and form artefacts on a self-contained fixture the Verification Artefact provides all the features needed to test probe and CMM performance. >, Provides early warning of any slow, systematic accuracy drift >, Provides an immediate check after any incident that may have affected the accuracy of a CMM >, Designed for horizontal or vertical orientation on the measuring table at any angle within the XY plane >, Designed for horizontal or vertical orientation on the measuring table at any angle within the XY plane |
| 02AKN020 |
| 06ABM944 |
| 515-763 |
| 63AAA322 |
