Description

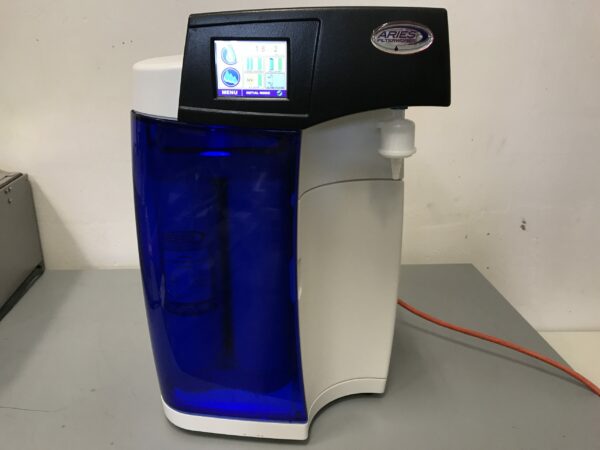

Description: The Phoenix Ultra High-purity Lab Water System from Aries FilterWorks delivers Type I, 18.2 Megohm water quality on demand. The water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals and internal recirculation to maintain purity. As the water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications. Additional technologies are offered depending on the application, including UV and Ultrafiltration. Multiple sensors continuously monitor the system and final water quality to ensure trouble free operation.
Specifications:
- Dimensions (H x W x D): 21.5 in. x 18.25 in. x 18.25 in.
- Weight: 42 lbs. dry / 47 lbs. operating
- Inlet Connection: 3/8″ O.D. Tubing (9.53 mm O.D. Tubing)
- Max Inlet Pressure Range: 20 to 90 psi
- Max. Output Flow: 2.5Lpm
- Inlet Water Temperature Range: 40 – 100 Degrees F
- Power Requirements: 120 VAC/ 60 Hz @ 1.0 amp
- Pressure: 90 PSIG Maximum/ 20 PSIG Minimum
- Temperature (Max.): 100˚F (30°C)
- Flow Rate (Typical): 0.67 Gallons Per Minute (2.5 Liters Per Minute), <, 2.0 LPM with Ultrafilter and Endotoxin filter installed
- Dimensions (H x W x D): 21.6 in. x 14.7 in. x 14.4 in. (54.8cm x 37cm x 36.5cm)
- Weight: 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating)
