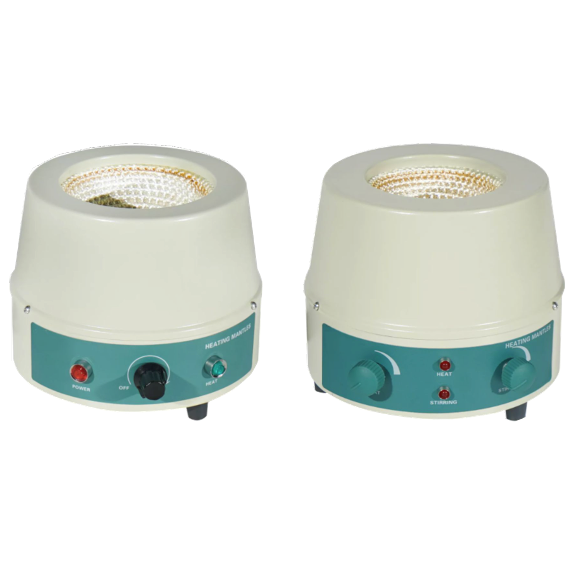

LABEC high quality Heating Mantles are available in a range of sizes to suit all common round bottom flask sizes. The analogue heating mantles have a built in simmerstat controller to regulate element temperature up to 450ºC. The flexible coiled heating element provides excellent heat transfer whilst absorbing shock to minimise flask breakage. The rigid steel housing supports the weight of the vessel and provides uniform heating of the vessel without the danger of and open flame.
Available with and without magnetic stirrer, support rod available separately.
Specifications:
- Heating Mode — Surface heat conduction
- Maximum Surface Temperature — 450°C
- Heating Element — Nichrome wire
- Construction — Painted steel plate (PTFE stirring bar, stirring models)
- Power Supply — 240V/10A
- Stirring Speed — 0~1600rpm (stirring models)
- Motor Power — 100W (stirring models only)
Product Capacity Dimensions Heating Power Weight EM-MN-50C/S
50ml Ø220 x 165mm
80W 2.5kg EM-MN-100C/S
100ml 100W EM-MN-250C/S
250ml 150W EM-MN-500C/S
500ml 250W EM-MN-1000C/S
1L Ø280 x 220mm
350W 5.5kg EM-MN-2000C/S 2L Ø330 x 230mm
450W 6.5kg EM-MN-3000C/S 3L Ø340 x 245
600W 7.5kg EM-MN-4000C/S
4L — 700W
— EM-MN-5000C/S 5L Ø350 x 250mm
800W 8kg EM-MN-6000C/S
6L — 900W
— EM-MN-10LC/S
10L Ø425 x 320mm
1200W 10kg EM-MN-20LC/S
20L Ø470 x 340mm
2500W 16kg
