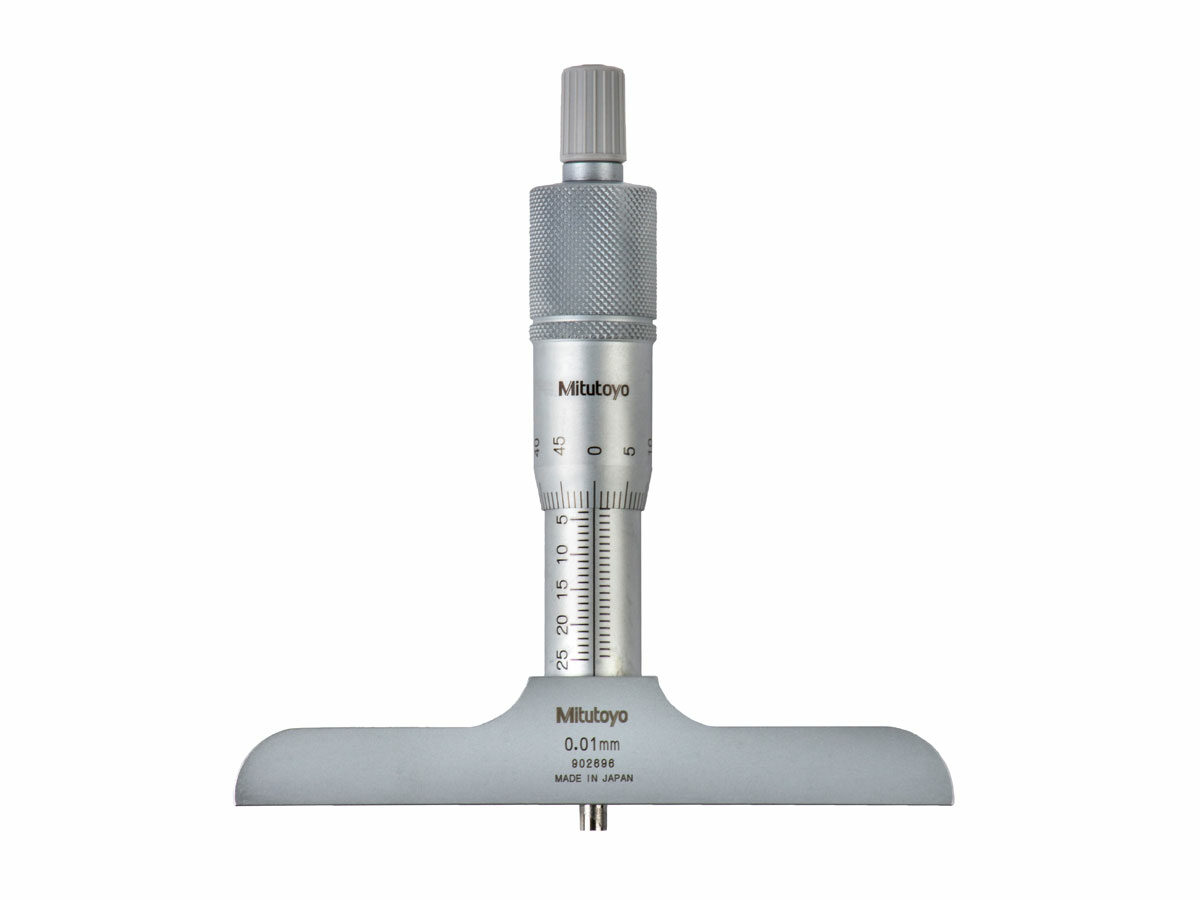

The depth micrometer is ideal for fast, highly accurate depth measurements of up to 25mm/1”. The depth micrometer is constructed of hardened tool steel, and offers a ratchet stop mechanism which provides uniform pressure for precise, repeatable measurements.
- Available in Metric and Inch models
- Available with carbide-tipped measuring rod
- Measuring rod clamp provides added stability for better accuracy, repeatability
- Satin chrome finish on thimble for better readability
- Rod diameters are 4mm
- Measuring rod clamps provide added measurement stability
- Supplied with a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Flatness of reference surface base: | Flatness of measuring face: | Base size: | Measuring Faces: | |
|---|
| 128-101 | — | Metric | 0-25mm | ±3µm | 0.01mm | 1.3µm | 0.3µm | 63.5 x 16mm | — |
| 128-102 |  | Metric | 0-25mm | ±3µm | 0.01mm | 2µm | 0.3µm | 101.6 x 16mm | — |
| 128-103 | — | Metric | 0-25mm | ±3µm | 0.01mm | 1.3µm | 0.3µm | 63.5 x 16mm | Carbide tipped |
| 128-104 | — | Metric | 0-25mm | ±3µm | 0.01mm | 2µm | 0.3µm | 101.6 x 16mm | Carbide tipped |
| 128-105 | — | Inch | 0-1″ | — | 0.001″ | 0.00005″ | 0.000012″ | 2.5 x .63″ | — |
| 128-106 | — | Inch | 0-1″ | — | 0.001″ | 0.00008″ | 0.000012″ | 4 x .63″ | — |
| 128-101 |
| 128-102 |
| 128-103 |
| 128-104 |
| 128-105 |
| 128-106 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Parallelism between reference face and measuring rod face: | (4+L/50)µm, L=Max. measuring length (mm) |
|---|
| Measuring rod diameter: | 4mm |
|---|
