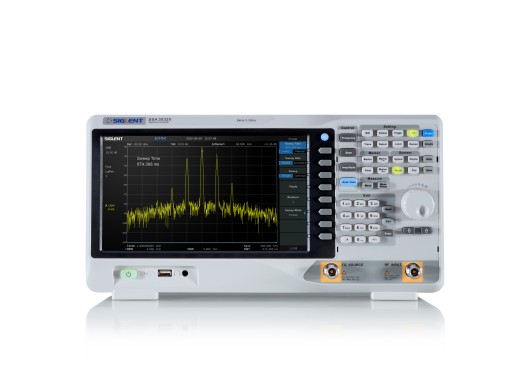

The Siglent SSA spectrum analysers have a bandwidth of 9 kHz up to either 2.1 or 3.2 GHz with a very small noise. The resolution of the measurements is as small as 1 Hz which allows for very accurate measurements.
The low noise is a unique property of these analysers. This limits the measurement error on smaller signals in particular. The given noise figure is only -161dBm/Hz. This is low enough to be unnoticeable in typical use. The standard Pre-amplifier allows for measurements to small signals, but can be disabled for a one-to-one image of the signal.
With the bandwidth up to 3.2 GHz common signals like Wifi or Bluetooth, that operate on the 2.4 GHz band, can be analysed. But for example GSM, that starts at 380 MHz is well within the range of this spectrum analyser. A useful property of these spectrum analysers is the ability to upgrade them with optional accessories. One of these options is ACPR or Adjacent Channel Power Ratio, which is an important property for antenna engineers. This is a requirement in wireless telecommunications as channels are not allowed to overlap each-other too much.
The large 10.1′ WVGA display with 1024 by 600 pixels offers ample space for measurement data. The software supports up to 4 cursors simultaneously, which allows for easy data analysis.
Are you looking for an attenuator with various connectors for your spectrum analyser? Then this utility kit from Siglent is suitable for you. See here for more information.
Siglent SSA and SVA series
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
SeriesSSA3000XSSA3000X-PLUSSSA3000X-RSVA1000X Models SSA3021X
SSA3032X SSA3015X-PLUS
SSA3021X-PLUS
SSA3032X-PLUS
SSA3075X-PLUS SSA3032X-R
SSA3050X-R
SSA3075X-R SVA1015X
SVA1032X
SVA1075X Max. bandwidth 3.2 GHz 7.5 GHz 7.5 GHz 7.5 GHz Tracking generator Yes Yes Yes Yes VNA No No Yes, and DTF Yes Real-time No No Yes No Options AMK, EMI, refl AMK, EMI, refl, AMA, DMA AMK, EMI, AMA, DMA, RT40 AMK, EMI, AMA, DMA, DTF Connectivity — Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver Model overview of SSA3000X series
Here you will find an overview of the differences between the models in the Siglent SSA3000X series. The main difference is in bandwidth.
ModelSSA3021XSSA3032X Bandwidth 9 kHz — 2.1 GHz 9 kHz — 3.2 GHz Price 1299 €1,299.00 Excl. VAT 2259 €2,259.00 Excl. VAT Specifications RBW 1 Hz — 1 MHz DANL — 161 dBm/Hz Total amplitude accuracy Phase noise Internal reference frequency 10.000000 MHz Vertical logaritmic range 10 dB tot -100 dB Built-in storage 256 MB Built-in pre-amp Ja Display 10.1′ colour 1024 x 600 Interfaces USB host/device, LAN, RJ-45 Dimensions 393 x 207 x 116.5 (mm) Weight 4.6 kg Options By means of the following options you can add additional features. EMI pre-compliance software The EMI pre-compliance software provides Quasi-peak detector and EMI filters. These can be used to test whether equipment meets the requirements of the EMI regulations. EMI pre-compliance kit 425 €425.00 Excl. VAT Info Add to Cart SRF5030T EMI probes This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards. SRF5030T 499.17 €499.17 Excl. VAT Info Add to Cart Reflection measurements In combination with the Tracking generator this option can be used to measure the reflection of antennas. Reflection measurements 559 €559.00 Excl. VAT Info Add to Cart Advanced measuring kit This kit offers measurements like ‘Channel power’, ‘ACPR’, ‘Time domain power’, ‘Occupied bandwidth’, ‘Third order intercept’ and ‘Carrier to Noise Ratio’. It extends the analyzers’ measurement capabilities enormously. Advanced measurement kit 315.7
Regular Price: €395.00
Now: €315.70 Excl. VAT
Info Add to Cart USB to GPIB With this option, you can can control the function generator through GPIB. USB-GPIB 123 €123.00 Excl. VAT Info Add to Cart Accessories
The Siglent SSA3032X is delivered including:
- Power cord
- Quick-start guide
- USB cable
- Calibration certificate
