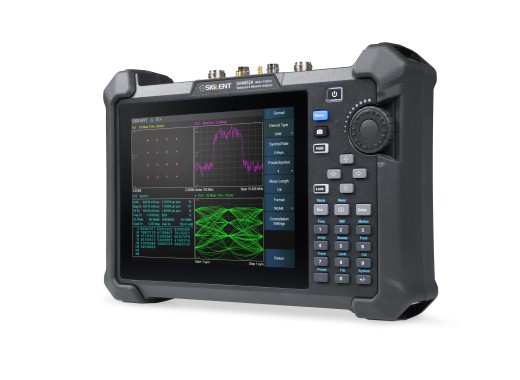

The Siglent SHA852A is a powerful handheld spectrum analyser and cable and antenna analyser in one, with a maximum bandwidth of 7.5GHz. The analyser comes with a large 8.4′ touchscreen display, together with a full keyboard control on the side, making the SHA852A easy to operate. Even though this is a handheld spectrum analyser, it can still compete with its desktop competitors, as it comes with an even better phase noise of 104dBc/Hz and it has a DANL of -165dBm/Hz.
The cable and antenna test frequency ranges from 100kHz to 7.5GHz, and it can offer information about Distance to Fault and a Time Domain analysis. In addition, the Siglent SHA852A can be extended with many options, such as a Vector Network Analysis option, which can have a bias output of up to 32V. Besides the VNA option, the analyser can be extended with a GPS location and trace log recorder option, analog- and digital modulation analysis options, and an advanced measurement kit option. Scroll down to see a complete overview of all possible options.
At last, the SHA852A is equipped with a built-in amplifier and can be equipped with an independent signal source (option), and it is possible to perform interference analysis with the use of a directional antenna kit (option). All in all, this analyser is the ideal option to perform RF measurements in the field, without having to compromise on the quality of the measurements.
Model overview
Siglent offers two models in the SHA850A series, which differ mainly in bandwidth.
ModelSHA851ASHA852A Bandwidth (spectrum analysis)(cable/antenna test) 9 kHz — 3.6 GHz100 kHz — 3.6 GHz 9 kHz — 7.5 GHz100 kHz — 7.5 GHz Price 3910 €3,910.00 Excl. VAT 6480 €6,480.00 Excl. VAT Specifications RBW 1 Hz — 10 MHz DANL- 165 dBm/Hz Amplitude accuracy<, 0.7 dB Phase noise <, — 104 dB/ Hz Tracking generator Independent source (option) InterfacesRF input (port 2), Source (port 1), USB-host, USB-device, LAN, GPS receiver, Bias out, 10 MHz reference input, external trigger, Jack plug Display8.4′ TFT LCD (800×600) touchscreen Working time4 hours Dimensions310 x 215 x 78.5 mm Weight3.2 kg Options
Below you can find all options that can be used to extend the capabilities of your SHA850A spectrum analyser, grouped per category. Click on each name to see the full list of options!
Software options ▼, SHA850-SOR 272.76 €272.76 Excl. VAT Info Add to Cart Add an independent source to your SHA850Amodel with a bandwidth of 100 kHz — 3.6/7.5 GHz. SHA850-VNA 935.73 €935.73 Excl. VAT Info Add to Cart Upgrade your SHA850A model with VNA measurements. SHA850-AMK 367.47 €367.47 Excl. VAT Info Add to Cart Add the advanced measurement kit to your SHA850A model SHA850-AMA 310.65 €310.65 Excl. VAT Info Add to Cart Add the Analog Modulation Analysis option to yourSHA850A model, to analyse AM/FM/PM signals. SHA850-DMA 556.89 €556.89 Excl. VAT Info Add to Cart Add the Digital Modulation Analysis option to yourSHA850A model, to analyse ASK/FSK/PSK/MSK/QAM signals. SHA850-BIAS 121.23 €121.23 Excl. VAT Info Add to Cart Add the Bias option to your SHA850A model, to generate 12-32V outputs. SHA850-GPS 159.11 €159.11 Excl. VAT Info Add to Cart Add the GPS option to your SHA850A model to receive GPS signals. Do mind, this option requires the use of the Siglent ANT-GPS1 antenna. SHA850-GPSM 159.11 €159.11 Excl. VAT Info Add to Cart Add the GPSM option to your SHA850A model to log GPS signals. Do mind, this option requires the use of the Siglent ANT-GPS1 antenna and SHA850-GPS option. Antennas ▼, ANT-DA1 6050.07 €6,050.07 Excl. VAT Info Add to Cart Directional antenna kit for your SHA850A spectrum analyser. The set consists of the ANT-DA11, ANT-DA12 and ANT-DA13 directional antennas. ANT-DA11 2545.8 €2,545.80 Excl. VAT Info Add to Cart Directional antenna for use in the frequency range 10MHz — 200MHz. ANT-DA12 2545.8 €2,545.80 Excl. VAT Info Add to Cart Directional antenna for use in the frequency range 200MHz — 500MHz. ANT-DA13 3019.35 €3,019.35 Excl. VAT Info Add to Cart Directional antenna for use in the frequency range 500MHz — 8GHz. ANT-GPS1 17.05 €17.05 Excl. VAT Info Add to Cart GPS antenna to be used with the SHA850-GPS option Accessories
The Siglent SHA852A is delivered including:
- USB-C cable
- Power cord
- AC-DC adapter
- Battery (built-in)
- Portable bag
