Free options and discount! The RSA5065N now includes free EMI and Pre-amplifier options, in addition with a price discount. This promotion is valid until September 30th 2023.

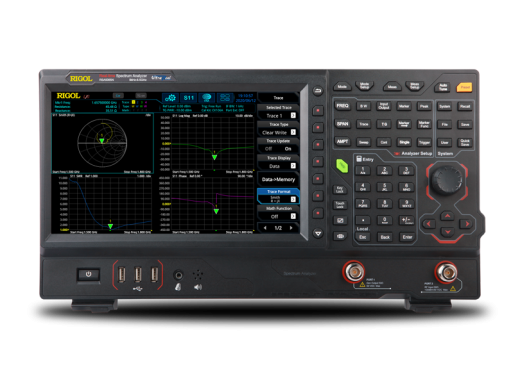

This beefy spectrum analyser is a real-time spectrum analyser which features a tracking generator and the VNA functionality for S11, S21 and DTF measurements.
It has a frequency range of 9 kHz up to 6.5 GHz, useful for a wide variety of applications such as complex wireless, RF technologies and data buses such as SPI and I2C. Analyse signals as small as 7.45 s at a minimum of 1 Hz resolution bandwidth.
Some features which make this analyser stand out are its 10.1′ multi-touchscreen for various touch gestures, alongside the traditional button operation. You can also hook up an external HDMI monitor or even make use of its convenient Web Control function to access and interface with the device.
Various options are available, these include (but not limited to) a vector signal analysis measurement application, EMI measurement, a preamplifier, high stability clock and more. Specifications Frequency range9 kHz to 6.5 GHz Real-time analyse bandwidth25 MHz DANL-136 dBm VNA Yes Frequency resolution1 Hz Sweep speed1 ms (full span) Trigger typeFrequency mask, IF power level, external Phase noise<,-108 dBc/Hz InterfacesUSB to external host, USB, LAN, GPIB Display10.1” touchscreen (1024×600) Weight4.95 kg Dimensions410 x 224 x 135 mm Options VSA Enables complex signal analysis and demodulation. The ability to analyze quadrature encoded signals makes it possible to characterize RF modulations, validate signals vs preset standards, view constellation diagrams and more to speed debug of these complex signals. RSA5000-VSA 1765 €1,765.00 Excl. VAT Info Add to Cart EMI Provides a complete EMI PreCompliance Solution with scans, peak tests, limits, and multiple simultaneous CISPR detectors. With the EMI Measurement Mode you can compare, analyze, and report on EMI issues throughout a design process. RSA5000-EMI 880 €880.00 Excl. VAT Info Add to Cart Preamplifier Can reduce the DANL on a spectrum analyzer allowing the user to distinguish lower power signals from the noise. Has a gain of 20 dB. RSA5000-PA 349 €349.00 Excl. VAT Info Add to Cart 40MHz bandwidth Increase the realtime bandwith to 40MHz RSA5000-B40 1274 €1,274.00 Excl. VAT Info Add to Cart Advanced measurement kit Allows users to perform additional RF characterization, filter characterization, amplifier measurements and and mixer validation testing RSA5000-AMK 487 €487.00 Excl. VAT Info Add to Cart
