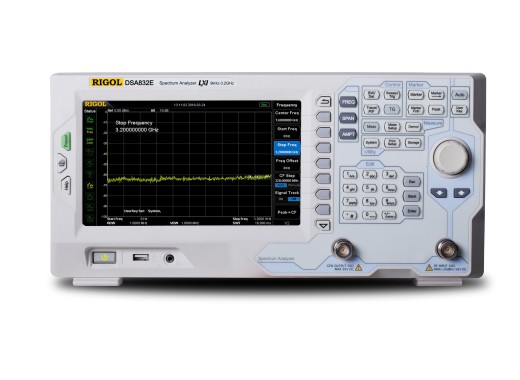

The Rigol DSA832E is a 3.2 GHz spectrum analyser. With this spectrum analyser you can do measurements in the commonly used 2.4 GHz band! This series of spectrum analysers offer great performance at an affordable price. The analysers are equipped with a widescreen display and a user-friendly interface that makes it easy to use. These spectrum analysers are based on a fully digital intermediate frequency filtering which makes it easy to use, ensures high resolution, high measuring speed and low noise.
The spectrum analysers can be connected to a computer via USB, LAN or optional GPIB connector, and then via Ultra Sigma, or NI software can be easily communicated with the analyser. In addition, various information can be stored on a memory stick via the built-in USB port. Furthermore, the analysers have a headphone jack to perform AM/FM demodulation and hear the audio exhaustion. These spectrum analysers are well suited to perform EMI measurements, for example, before the device to be tested is sent to an inspection body. goes. By saving a single trip to an inspection body, this device already earns itself back.
Models
The models in this series differ in frequency range, phase noise and DANL (Displayed Average Noise Level). In the upper right corner of the dropdown menu you can select the desired version and add it to your shopping basket.
ModelDSA815
DSA815-TGDSA832E
DSA832E-TGDSA832
DSA832-TGDSA875
DSA875-TGDSA815-TG Frequency range 9 kHz — 1.5 GHz 9 kHz — 3.2 GHz 9 kHz — 3.2 GHz 9 kHz — 7.5 GHz Phase noise -80 dBc/Hz -90 dBc/Hz -98 dBc/Hz -98 dBc/Hz DANL -155 dBm -158 dBm -161 dBm -161 dBm Price (2 channels)
Tracking Generator Specifications (-TG models)
The models with a -TG after the name are delivered with a Tracking Generator. ModelDSA815-TGDSA832E-TGDSA832-TGDSA875-TGDSA875-TG Frequency range 100 kHz — 1.5 GHz 100 kHz — 3.2 GHz 100 kHz — 3.2 GHz 100 kHz — 7.5 GHz Output level -20 — 0 dBm -40 — 0 dBm -40 — 0 dBm -40 — 0 dBm Output level resolution 1 dB 1 dB 1 dB 1 dB Specifications Display 8′ LCD, 800*480 pixels Resolution 1 Hz Internal reference frequency 10 MHz Third-order intercept (IP3) +10 dBm (-815)
+7 dBm (-832E)
+11 dBm (-832)
+15 dBm (-875) Maximum input voltage 50V DC Maximum input power 30 dBm Amplitude display
Log: 1 dB — 200 dB
Linear: 0 — Reference level
Connections USB 2.0 type A, USB 2.0 type B, Lan Frequency counter Yes Weight (without box) 4.25 — 4.55 Kg Dimensions 361.6 x 178.8 x 128 mm (WxHxD)
For more information you can find the complete datasheet of the DSA800 series at the bottom of this page. Options DSA800-EMI measurement application This extension adds an EMI filter, Quasi-Peak detector and EMI resolution bandwidth functions to your DSA800 series spectrum analyser. DSA800-EMI 480.95 €480.95 Excl. VAT Info Add to Cart Near Field Probe kit This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range of 30 MHz to 3 GHz. Suitable for all Rigol spectrum analysers. NFP-3 461.03 €461.03 Excl. VAT Info Add to Cart Accessories The DSA800 series come bundled with:
- User manual
- Power cord
