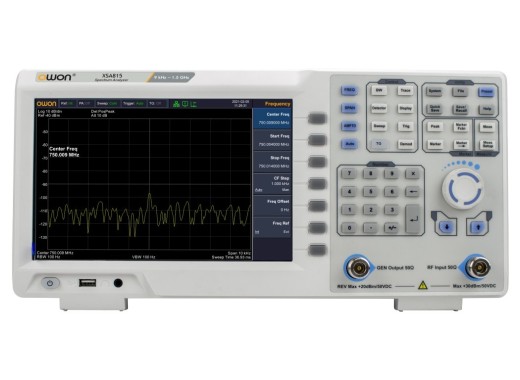

The Owon XSA815 spectrum analyser has an excellent price/quality ratio with a frequency range up to 1.5 GHz. Do you want a spectral analyser that includes a tracking generator? You can find the page of the Owon XSA815-TG here.
Furthermore, the spectrum analyser has a 9′ LCD screen which is smaller than the Owon XSA1000 series spectrum analysers which have a 10.4′ LCD screen. Moreover, the minimum noise level of the analyser is -140 dBm/Hz and -160 dBm/Hz with the pre-amplifier turned on. What differentiates Owon spectrum analysers from other spectral analysers is that it comes with certain options such as a EMI pre-compliance function, waterfall plot graphic and a standard Pass/Fail on-site test and alert function. Finally, the Owon XSA815 has an option to add EMC test software. Model overview Model XSA815 XSA815-TG Bandwidth 9 kHz — 1.5 GHz 9 kHz — 1.5 GHz Tracking generator No 100 kHz — 1.5 GHz Phase noise -80 dBc/Hz at 1 GHz and offset at 10 kHz -80 dBc/Hz at 1 GHz and offset at 10 kHz Display 9′ TFT LCD 9′ TFT LCD Noise level Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz Price 759 €759.00 Excl. VAT 799 €799.00 Excl. VAT Specifications Frequency 9 kHz — 1.5 GHz Resolution 1 Hz Tracking generator 100 kHz — 1.5 GHz, -40 dBm — 0 dBm Connections USB host/device, LAN (RJ45), HDMI Dimensions 375 mm x 185 mm x 120 mm Weight 3.7 kg Accessories
The XSA815 comes by default with:
- Power Cord
- Quick guide
- USB Cable
