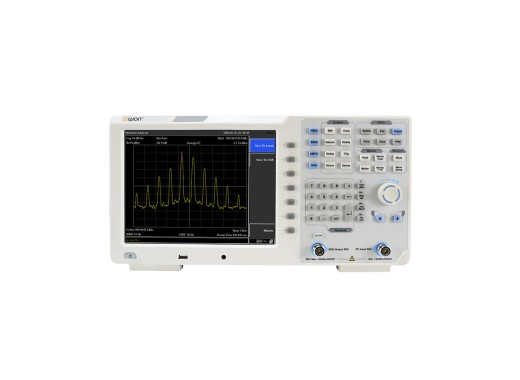

The Owon XSA1075P-TG spectrum analyser features a notably large bandwidth of 7.5 GHz at this pricepoint, in addition to a tracking generator. The low noise level (up to -160 dBm/Hz with the pre-amplifier turned on) and the included measurement functions together allow for advanced and precise measurements to be carried out, which can easily be read off of the 10.4′ LCD touchscreen display. The tracking generator is able to produce an output frequency of 100 kHz to 7.5 GHz, with an output power of -40 dBm to 0 dBm. All Owon XSA1000P-TG series spectrum analysers offer very similar performance, with their main distinctive aspect being the frequency range they can operate in. Additionally, they all feature a Pass/Fail function, EMI pre-compliance test function and waterfall plot function by default. Model overview Model XSA1015P-TG XSA1032P-TG XSA1036P-TG XSA1075P-TG Bandwidth 9 kHz — 1.5 GHz 9 kHz — 3.2 GHz 9 kHz — 3.6 GHz 9 kHz — 7.5 GHz Tracking generator 100 kHz — 1.5 GHz 100 kHz — 3.2 GHz 100 kHz — 3.6 GHz 100 kHz — 7.5 GHz Temperature stability <, 2.5 ppm (15 ℃ to 35 ℃) <, 2.5 ppm (15 ℃ to 35 ℃) <, 2.5 ppm (15 ℃ to 35 ℃) <, 1,0 ppm (15 ℃ to 35 ℃) Phase noise (at 10 kHz offset) <, -106dBc/Hz <, -106 dBc/Hz <, -106 dBc/Hz <, -106 dBc/Hz Price 975.21 €975.21 Excl. VAT 1446.28 €1,446.28 Excl. VAT 1615.7 €1,615.70 Excl. VAT 4545.45 €4,545.45 Excl. VAT Specifications RBW1 Hz — 1MHz Resolution1 Hz Noise level Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz Maximum input voltage50 Vdc Maximum input power30 dBm average continuous power Amplitude displayLog: 1 dB — 255 dB, 5 divisions
Linear: 0 — 100 %, 5 divisions Tracking generator output power-40 dBm — 0 dBm Interfaces HOST USB, USB DEVICE, LAN, 3.5mm jack, REF, HDMI Display10.4′ LCD (1024×768) Dimensions375 x 185 x 120 mm Weight5 kg Accessories
The Owon XSA1075P-TG is delivered including:
- Power cable
- USB cable
