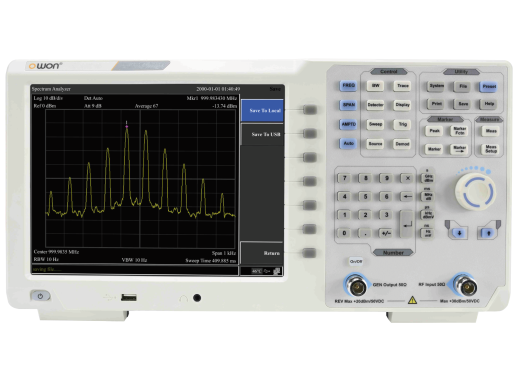

Owon’s XSA1036P-TG spectrum analyser has an excellent price/quality ratio, as it has a frequency range up to 3.6 GHz and has a tracking generator. This spectrum analyser has a large 10.4′ touchscreen LCD display and is equipped with advanced measurement functions. The minimum noise experienced by this spectrum analyser is -140 dBm/Hz and -160 dBm/Hz when the built-in pre-amplifier is switched on. The tracking generator is capable of producing an output frequency of 100 kHz to 3.6 GHz. Furthermore, the power of this signal is adjustable from -30 dBm to 0 dBm. Additionally, all XSA1000P-series spectrum analysers feature a Pass/Fail function, EMI pre-compliance test function and waterfall plot function by default.
Model overview Model XSA1015P-TG XSA1032P-TG XSA1036P-TG XSA1075P-TG Bandwidth 9 kHz — 1.5 GHz 9 kHz — 3.2 GHz 9 kHz — 3.6 GHz 9 kHz — 7.5 GHz Tracking generator 100 kHz — 1.5 GHz 100 kHz — 3.2 GHz 100 kHz — 3.6 GHz 100 kHz — 7.5 GHz Temperature stability <, 2.5 ppm (15 ℃ to 35 ℃) <, 2.5 ppm (15 ℃ to 35 ℃) <, 2.5 ppm (15 ℃ to 35 ℃) <, 1,0 ppm (15 ℃ to 35 ℃) Phase noise (at 10 kHz offset) <, -106 dBc/Hz <, -106 dBc/Hz <, -106 dBc/Hz <, -106 dBc/Hz Price 975.21 €975.21 Excl. VAT 1446.28 €1,446.28 Excl. VAT 1615.7 €1,615.70 Excl. VAT 4545.45 €4,545.45 Excl. VAT Specifications RBW1 Hz — 1MHz Resolution 1 Hz Noise level Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz Third-order intercept (IP3) +13 dBm Maximum input voltage50V DC Maximum input power 30 dBm average continuous power Amplitude display
Log: 1 dB — 255 dB, 5 divisions
Linear: 0 — 100 %, 5 divisions
Tracking generator (variable frequency)100 kHz — 3.6 Ghz, -30 dBm — 0 dBm Signal generator (fixed frequency)35 MHz — 3.6 Ghz Interfaces HOST USB, USB DEVICE, LAN, earphone port, HDMI Display10.4′ LCD (1024×768) Dimensions375 mm x 185 x 120 mm Weight5 kg Accessories
The Owon XSA1036P-TG is delivered including:
- Power cord
