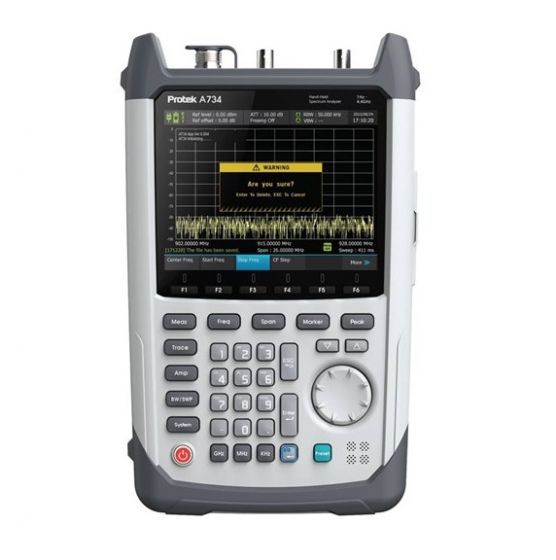

Анализатор спектра А734 Протек

A734 — это анализатор спектра 4,4 ГГц от компании «Протек». Анализатор спектра измеряет мощность спектров известных и неизвестных сигналов. Анализаторы спектра собирают такую информацию, как величина входного сигнала по сравнению с его частотой. В качестве частотного анализатора анализаторы спектра в основном используются для документирования и анализа электрических входных сигналов, а также спектральных составов других сигналов.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: A734 Protek Spectrum Analyzer TME арт.: A734 Protek Spectrum Analyzer

Анализаторы

Additional Features:

Zero Span Function
Minimum Span: 600Hz
8 hours operation
Smart Battery Indicator
5.7” TFT Sun-light Readable Screen
Audio Listen
Modern Connectivity: USB, LAN

Specifications

Frequency

Frequency Range: 100kHz~4.4GHz
Span Mode: Center Freq + Span or Start Freq + Stop Freq, ZERO Span
Span: ZERO Span, 600 Hz ~ 4.4 GHz
Minimum Span: 600 Hz
Internal Frequency Reference Accuracy: ±1PPM
Frequency Readout Accuracy: ±1PPM
Marker Accuracy: ±1PPM
RBW: 0.1Hz to 240KHz & 5MHz (0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6,5, 13, 25, 50, 100 Hs or kHz)

Amplitude

Measurement Range: DANL ~ 1dB Gain Compression
1dB Gain Compression (attenuator 15dB, preamp off)
+16dBm Typical, 1Hz to 150MHz
19dBm Typical, 150MHz to 4.4GHz
DANL — Displayed Average Noise Level: odB ATT, 1Hz RBW
Amplitude unit: dBm, dBmV, Watt, V
Absolute Accuracy (ref level &lt, odBm): ±1.5dB Typical
Absolute Accuracy (odBm&lt, ref level &lt, 10dBm): ±1.5dB
Relative Accuracy (ref level &lt, odBm): ±0.25
Maximum Safe Input Level (preamp off, 15dB att): ±20dBm
DC Volt: ±0.2V max

Sweep

Zero Span Sweep Time: 10 ms to 2 sec (±0.1%) All other sweep times are estimates reported after sweep completes
Sweep Triger: freerun, single, external
External Trigger: 3.3V CMOS/TTL input

Display

TRACE: 3 Trace
DETECTOR: min, max, sample, avg (power, voltage, log)
Marker: 5 Marker
Marker function: peak, next peak, center=marker frequency
Audio Demodulation: AM & FM
Type: 5.7″ Color TFT-LCD 640*480 pixels
Display Resolution: 640*480 pixels
Feature: Sunlight Readable
Keypad Back Light: ON/OFF

Input

RF Connector: RF Signal IN, N type Female 50OHM
BNC External Timebase: 10MHz in, BNC type Female
BNC Share: Self-test, Sync out, Sweep Trigger IN, BNC type Female

General Spec

Operating Environment: -10°C to 50°C &lt, 95%
Humidity: &lt, 95%
Storage Temperature: -20°C to +60°C

Power

Battery: Li-ion Rechargeable Battery 6Cell (normal 7.4V/7800mA)
Power Adaptor: AC Input: AC 100-240 V, 50/60 Hz, 1.5A, DC Output: DC 12Vdc/5.0A

Dimension

Size: 160(W) X 263(H) 61(D) mm

Other

Speaker: 0.5W 8ohm Speaker 1Ch
AF out
Interface: Storage (USB port), LAN (RJ-45 Port)

Environmental

For Indoor use
Altitude up to 2000m
Pollution Degree 2°

The Protek A734 handheld spectrum analyzer has been optimized for the convenience of mobility with lightweight, 5.7-inch sunlight readable LCD, long battery life (&gt, 8 hours) and smart battery indicator.

Comparable DANL (Displayed Average Noise Level) enables users to detect more accurately low level of signals and additional features such as phase noise measurement, audio listen, and zero span options, will lead users to take advantage of Protek A734 in more field applications than other spectrum analyzers.

The Protek A734 has been designed for use in the process of development, adjustment and testing of various electronic devices in industrial and laboratory facilities, including operation as a component of an automated measurement system.

Технические характеристики

Manufacturer	Protek
Condition	Used
Frequency	4.4 GHz
