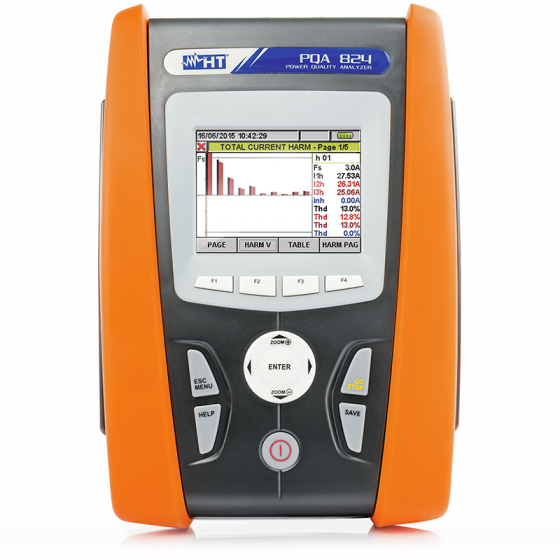

PQA 824 USA HT Instruments Power Analyzer

PQA824 Power quality analyzer with voltage spikes (5µs) measurement

Features:

• PQA824, is a three-phase and single-phase Power Quality Analyzer.
• It allows the analysis of all electric parameters which can be measured nowadays, elaborating them easily and quickly. These devices can be easily programmed thanks to the new colour touchscreen display with icon menu, which guarantees the selection of internal parameters in a simple and intuitive way.
• Each internal parameter is easily reached through the typical tree structure, widely known to Windows system users. The devices allow displaying the parameters in numerical and graphic mode, both for periodical analysis and for harmonic analysis. The graphic function “vector diagram” allows, among other things, to immediately evaluate the phase angle between input voltage and current signals, thus defining the loads» nature. The 15MB internal memory allows saving recorded data for a remarkable number of consecutive days.
• Model PQA824, compared to PQA823 and VEGA78, also allows detecting spikes on input voltages with a minimum resolution of 5μs (200kHz), setting different trigger thresholds which are very useful when solving typical problems on installations (monitoring atmospheric charges, commutations of switching suppliers, disturbance frequencies, etc.). The Help online function available on each screen is a valid and concrete help for the operator in understanding how the devices are used.

Specifications:

Functions

• AC/DC voltage in single-phase/three-phase systems Max 1000V
• AC/DC current in single-phase/three-phase systems Max 3000A
• Cosphi, Power Factor
• Voltage unbalance (NEG%, ZERO%)
• Active, reactive, apparent power/energy and DC power
• Voltage and current harmonics up to the 49th with THD In real time up to the 64th
• Voltage anomalies (dips, peaks) with a resolution of 10ms (@ 50Hz)
• Voltage Spikes with 5µs resolution
• Electric motor starting current (INRUSH)
• Voltage flickers (Pst, Plt)
• Full analysis EN50160
• Phase sequence
• Neutral-Ground Voltage
• Neutral current
• Max number of simultaneously selectable parameters 251
• Recording with selectable integration period 1s-60m
• Indicative memory duration (@ PI=10min @ max numb parameters) 90 days
• Indication of recording duration
• Internal memory capacity 15MB
• External compact flash card Optional
• Default and custom recordings
• Saving instant sampled values
• Summary table of main electric parameters
• Voltage/current waveforms
• Tables or histograms of Harmonics and THD% In tempo reale fino alla 64ª
• Voltage/current vector diagram
• Touchscreen colour display
• Power supply with rechargeable battery
• Auto power off
• USB port for data download onto Pen Drive
• Context help active on each screen
• Protection password on recording
• Size (LxWx H) (mm) 235x165x75
• Weight in grams (batteries included) 1000

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• EN50160
• IEC/EN61000-4-15
• IEC/EN61000-4-30 Class B
• IEC/EN61010-1
• IEC/EN61187
• LVD 2014/35/EU
