| RF Power Meter (requires no detector) |
| Color Display |
| Transit Case |

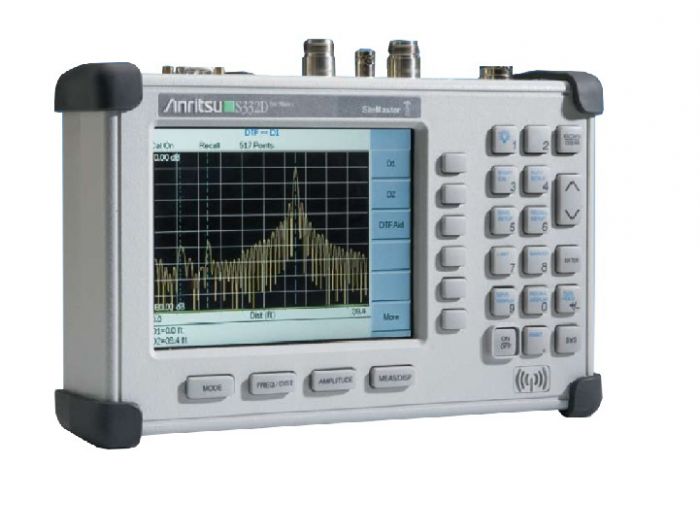

Anritsu S332D Features:
- Frequency Range: 25 MHz to 4000 MHz
- Frequency Accuracy: 75 ppm @ +25°C
- Frequency Resolution: 100 kHz
- Output Power: <, 0 dBm (–10 dBm nominal)
- Immunity to Interfering Signals: on-channel +17 dBm, on-frequency –5 dBm
- Measurement speed: 3.5 msec / data point (CW ON)
- Number of data points: 130 or 259 or 517
- Handheld, battery-operated design, Weighs less than 5 lbs. (including battery)
- Built-in worldwide signal standards and frequency channels, Superior Immunity to RF interference
- Locate long range problems with 517 data points
- Pop-up cable menus containing over 95 cable types
- Multilingual User Interface, English, French, Chinese, Japanese, Spanish, German
- Intuitive and easy to use with On-Screen Test Set-Ups
- Saves 15 to 35 Measurement Test Set-Ups (10 VNA, 5 SPA/Opt 21, 5 each Option 19/25/27/29)
- Saves up to 300 Measurement Traces
- Alphanumeric Labeling of Saved Measurements
- Automatic Time and Date Stamp of Saved Data
- Rechargeable, Field Replaceable Battery
- Distance Measurement in Feet and Meters
- Information Screens Provide Cable Attenuation and Velocity of Propagation values
- 6 Markers, Limit Lines, and Segmented Limit Lines
- RS232 Interface
Applications:
- Wireless Network Field Measurements
- Cable and antenna testing for VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL applications.
- Return Loss measurement
- Distance-To-Fault measurement
- Cable loss measurement Interference Detection and Analysis
- Rapid sweep speed to detect interference
- AM/FM/SSB detection
- Interfering signal type determination helps quickly determine source of cellularinterference Base Station Transmitter Performance Testing
- Channel power
- Adjacent Channel Power Ratio
- Occupied Bandwidth
Spectrum Analysis:
- Built in pre-amplifier (standard)
- Noise Level <, — 135 dBm typical
- Resolution Bandwidth: 100 Hz to 1 MHz in 1-3 sequence
- Video Bandwidth: 3 Hz to 1 MHz in 1-3 sequence
- Dedicated smart measurements
- + 43 dBm maximum safe input level
The Site Master S332D integrated Spectrum Analysis capability provides the “ultimate” in measurement flexibility for field environments and applications requiring mobility. With the S332D you can locate, identify, record and solve communication systems problems quickly and easily, and with incredible accuracy – making it a perfect solution for conducting field measurements in the 100 kHz to 3 GHz frequency range.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 4 GHz |
