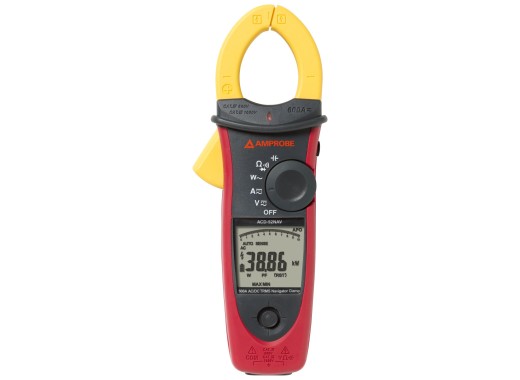

The Amprobe ACDC-52NAV is a True-RMS AC/DC current and power clamp, which doubles as a multimeter for measuring among others voltage, resistance and capacitance. It allows for easily verifying deployment of specialized tools with useful features such as measurement modes for individual harmonics, inrush current and the phase angle. The device is built sturdily as it is rated to withstand drops of up to 1.2 metres and it is certified to measure voltages of up to 1000 V and 600 A of current. A major advantage of this clamp is its ability to measure DC power, a rather unique feature among current clamps. Specifications Measurement specifications Voltage DC 0.01 — 1000 V ± (0.7% + 2) Voltage AC 0.01 — 1000 V ± (1.0% + 5) @ 50 ~ 500 Hz Current DC 0.01 — 600 A ± (1.5% + 5) Current AC 0.10 — 600 A ± (2% + 5) @ 50 ~ 400 Hz Frequency 20.00 Hz — 10 kHz ± (0.5% + 3) Inrush current 0.01 — 600 A ± (2.5% + 5) Active power AC/DC 0.001 — 600 kW see manual Resistance 0.001 Ω — 100 kΩ ± (1.0% + 5) Capacitance 0.001 — 4000 μF ± (1.9% + 8) True RMS Yes Safety CAT IV 600 V
CAT III 1000 V
1.2 m drop-proof Display 10000 counts, with analogue bar graph LCD backlight Yes Other functions THD measurement, phase rotation indication, power factor measurement, NCV detection, low pass filter for variable frequency drives, continuity beeper, min/max/smart/peak hold, torch, auto power-off Power 9V battery (approx 50 hours without backlight) Maximum jaw opening 37 mm Dimensions 51 x 87 x 234 mm (LxWxH) Weight 380 g Accessories
The ACDC-52NAV comes by default with:
- Pair of test leads
- Carrying case
Pros and cons
- Capable of measuring both AC and DC power
- Battery life sub-par
Downloads Beha-Amprobe ACD(C)-5x series user manual
(19.64 MB) Download
Beha-Amprobe CAT IV Navigator Clamps Meters datasheet
(241.6 KB) Download
