Features
- Measures rotational and surface speed
- User selectable units for contact measurement: RPM, m/min, ft/min, yd/min
- Non-contact measurement in RPM
- Digital display
- Auto power off function
- Easy to select units and mode functions

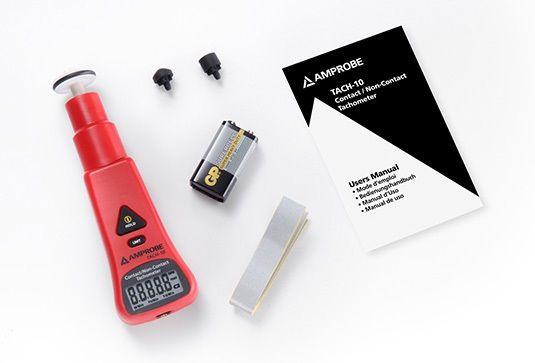

Accessories (Included)
- Meter
- 9V battery
- cone funnel contact tips
- reflective tape
- users manual
Specifications
- Rotation (non-contact): 10.0 rpm → 99999 rpm
- Rotation (contact): 10.0 rpm → 19999 rpm
- Surface speed (contact): 1.0000 m/min → 9999.9 m/min, 3.0000 ft/min → 30,000 ft/min
- LCD size: 15(H)x33(W)mm (0.6 x 1.3 IN)
- Battery: 9V battery
- Power consumption: 5uA(Idle), 18mA(measurement)
- Time base: 4.0Mhz Quartz Crystal
- Sampling time: 1 second (>,60RPM), >,1 second (10~60RPM)
- Measure distance: 5~30cm / 2~13 IN (non-contact)
Universal, economical tachometer measuring rotational or surface speed either in contact or non-contact way. Widely used to measure rotational speed of motors, conveyer belts and other moving or rotating systems.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
