Features
- Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh)
- Power mode – measurement of the power per unit area of incident solar radiation
- Transmission mode – calculates the solar power transmission percentage of the material for example how much solar power in % will be transmitted through the window
- Convenient to read display with remote sensor technology
- Selectable measurement units either W/m2 or BTU / ( ft2 x h)
- Data hold
- Max/min functions to indentify locations with maximum or minimum power
Accessories (Included)
- SOLAR-100
- Battery (installed)
- Carrying case
Application
- Windows performance – calculation and verification of the heating or heat reduction caused by direct sunlight
- Solar radiation measurements
- Solar power research for location of the solar panels or solar water heater
- Physics and optical laboratories
- Meteorology
- Agriculture
Specifications
- Solar power: Up to 2000 W/m2, 634 BTU/(ft2xh)
- Max/min: Yes
- Data hold: Yes
- Display: 3½ digits, 2000 readings
- Range: 1999 W/m2, 634BTU / (ft2xh)
- Battery: 1 X 9V Alkaline battery (NE DA 1604A, IE C 6LR61) included

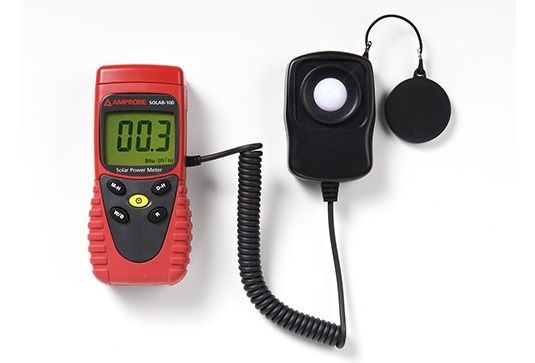

Optimize the placement of solar systems and verify window efficiency. The SOLAR-100 measures solar output that is used to calculate overall energy, efficiency and placement of solar systems.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
