Features
- Measures AC current up to 300 A
- Voltage up to 600 V AC
- Resistance and continuity
- Pointer lock – data hold
- Easy to use rotary scale
- Measures volts and amps, no batteries required
- Works in temperatures from 5 °F to 122 °F
- Operates on 50 and 60 Hz frequency
- CAT IV 600 V safety rated
Accessories
- RS-3 PRO
- Test leads
- Battery (installed for resistance measurement only)
- Carrying case
Specifications
- AC Voltage: 150 V, 300 V, 600 V
- AC Current: 6 A, 15 A, 40 A, 100 A, 300 A
- Resistance: 1000 ?
- Continuity: Yes
- Accommodates conductors: up to 1.64″ (41 mm) in diameter
- Display: Analog scales with clamping needle
- Jaw opening/conductor diameter: 1.64″ (41 mm) max
- Power supply volt/amp: Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03)
- Environmental: Indoor operation, below 2000 m (6,562 ft)
- AC Voltage (50/60 Hz): 150 / 300 / 600 V RMS
- Accuracy: ±3 % of full scale
- Input impedance: 1.5 MO
- AC Amp (50/60 Hz) range: 6 / 15 / 40 / 100 /600 Amps
- Ohms range: 1000 ohms, 25 Ohms mid-scale

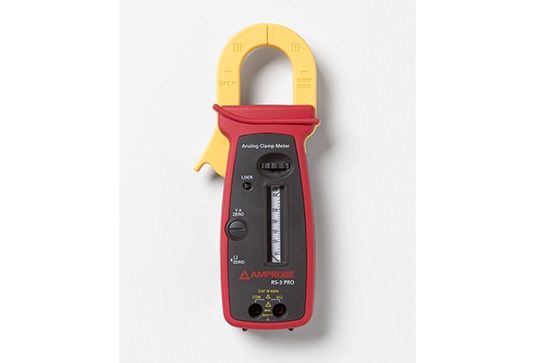

This CAT IV 600 V safety rated analog clamp is a great tool for tough electrical applications. The RS-3 PRO works well in extreme temperatures from 5 °F to 122 °F. The RS-3 PRO does not require batteries for measuring Amps and Volts and shows measurement with an easy-to-read rotary scale.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
