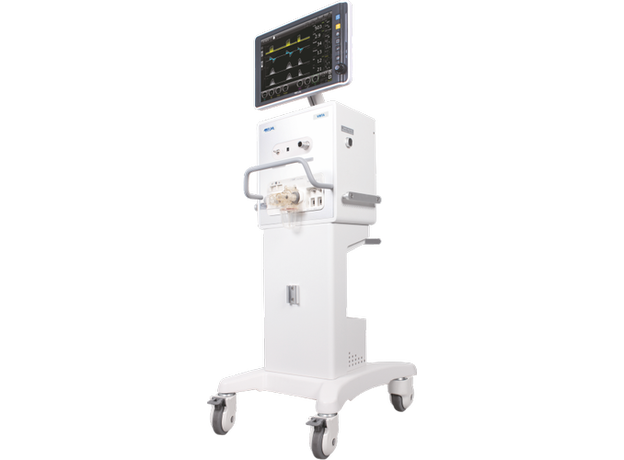

The Allied Meditec Vista is an advanced, microprocessor-controlled, pneumatically-driven ventilator that combines simplicity with the advantages of a modern ventilator. Designed for both Adult and Pediatric Patients, the ventilator provides a consistent performance with user-friendly operation.
Features of Allied Meditec Vista ICU ventilator:
- Invasive and Non-Invasive Ventilation Large Color 15′ Touch Screen Ventilation Modes — PACV, PSIMV, VACV, VSIMV, Spont, Apnea Back-up Ventilation, O2 Stream, PRVC, Bi-Level, AwPRV, Auto Vent
- Tidal Volume Range from 2-2500ml
- I: E Ratio 4:1 – 1:20
- Integrated Alarms& 1,000 event log
- Waveforms for Pressure vs Time, Flow vs Time, and Volume vs Time
- Spirometry Loops for Pressure-Volume, Flow-Volume, and Pressure-Flow
- Trend Data-VE/min, Pmean, Peak, PEEP, Vte, RR, CL, RA. Optional: SpO2, PR, iCO2, EtCO2
- Measuring Data- P0.1 measurement, Exp. Flow, RSBI, CL, RA, WOBV, WOBP
- Apnea Backup
- Built-in Pneumatic Nebuliser
- Lithium-Ion Battery
Specification of Allied Meditec Vista ICU ventilator: BrandAllied MeditecModelVistaModes of ventilationCMV(VC), CMV(PC), AV(VC), AV(PC), SIMV(VC)Usage/ApplicationICUDisplay TypeTouchscreenPower SourceAC & DCPatient Age GroupNeonatal To AdultVoltage (V)100 to 240 VACWeight (kg)51Frequency (Hz)50/60 HzBreathing Frequency0-150 bpmTidal Volume (ml)2-2500 mlAutomation GradeAutomaticNumber Of Wheels4Tidal Volume20 To 2000 MlDisplay Size (Inch)15Battery Backup (hr.)3Flow Range (m per sec.)180Trigger Sensitivity Flow (L per min.)20AlarmyesIs It PortablePortableBattery Back-Up180 minConditionNewAir CompressorYesPlace Of OriginIndiaVentilation modesVCV,PCV,SIMV(V)+PS,SIMV(P)+PS,SPONT/CPAP,Sigh PRVC,BIPAP,NPPV,APRV,A/C,Standby,ManualDrive modePneumatically driven,electronically controlledVentilation frequency1 to 100 bpmInspiration time0.1 to 10S (increment0.1S)Flow trigger0.1 to 20L/minPressure trigger-20~0 cmH2 OPressure control5 to 70 cmH2OPressure support0 to 70 cmH2OElectronic PEEP0 to 50 cmH2O (increment 1 cmH2O)Nebulizer30 minutesDirect access buttons100% O2 2 min, Inspiration hold, Expiration hold, Manual, Key LockWaveformStandard P-T, F-T, V-T, Optional SpO2 -T, EtCO2 -TLoopStandard P-V,F-V,F-P,Optional Volume-EtCO2TrendPeak,FiO,PEEP,MV,V,V 2 TE TISystem Log1000 events (setting an alarm)Communication InterfaceVGA, RS232, RJ45Screen15 inch TFT touch screenInternal Battery Backup180 MinutesHeight1423mmWidth499mmDepth599mmNet weight51 kg (without compressor)PowerAC 100~240V,50/60Hz,DC 12V,4.4AhAir and O SupplyPressure 2.8 to 6kPa, Flow Greater Than 50L/minTemperatureOperation 10 Deg C to 40 Deg C, Storage -20 Deg C to 55 Deg CHumidityOperation Less Than 80%,non-condensing,Storage Less Than 93%
