Description

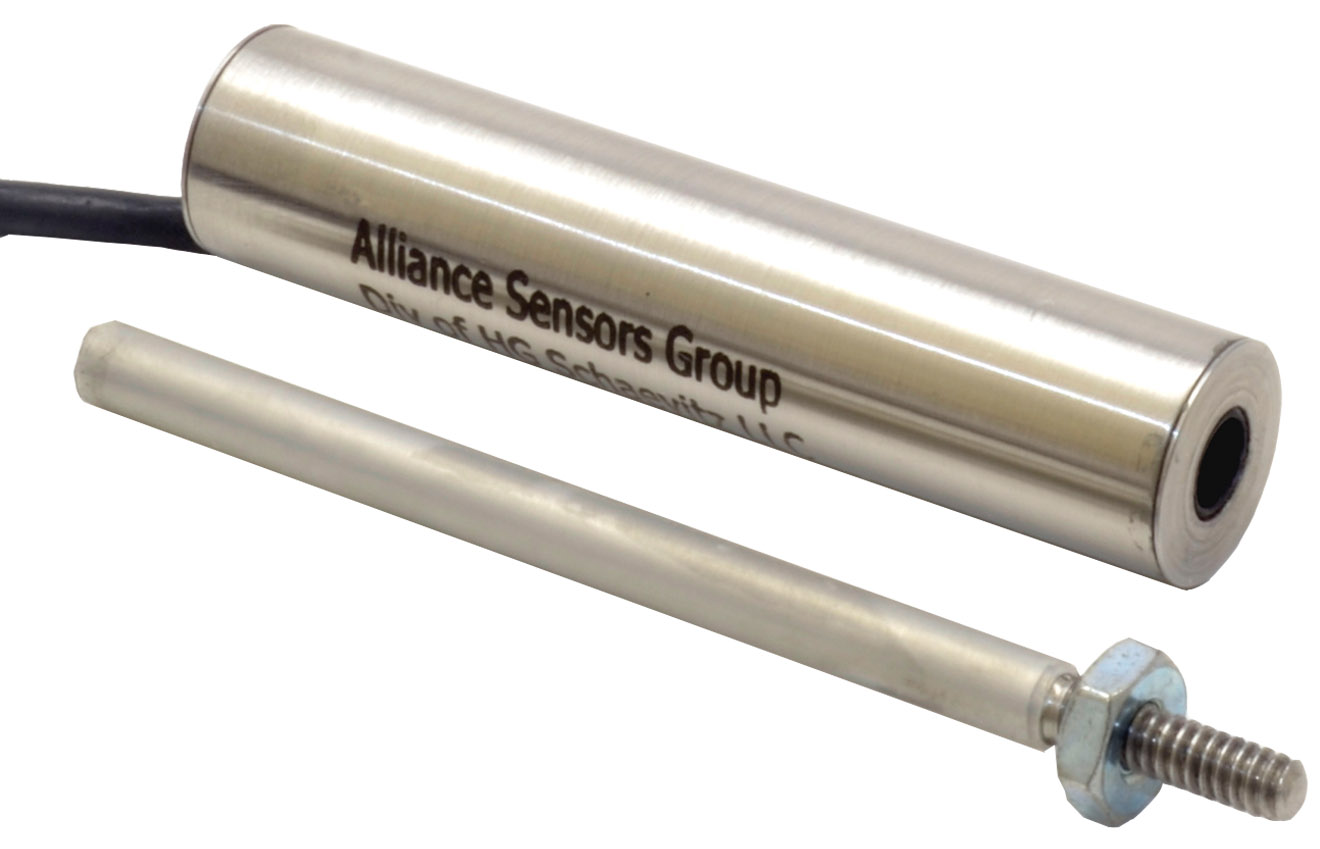

The Alliance Sensors Group LZ-13 series LVIT miniature linear position sensor is an inductive, contactless device designed for use in factory automation or assembly machinery applications where size is a constraint and/or a superior stroke-to-length ratio is required. The LZ-13 is offered in nominal full-scale ranges from 2.5 to 200mm (0.1 to 8in). The sensor has 12.7mm (0.5in) outside diameter stainless steel body with a 1m cable for I/O connections. The 4.78 mm (0.188in) diameter through-bore of the LZ-13 provides clearance for its 4mm (0.157 inch) diameter moving target rod with M4 thread and stainless steel hex nut. The through-bore feature also means that the sensor is not subject to damage from mechanical overstroking.
Applications
- Part Inspection and Location
- Assembly Machinery
- Packaging Machinery
- Automation Systems
- Factory Automation
Технические характеристики
Features
- 4 analog I/Os:
- 0 to 5VDC output, 8 to 30VDC input, 20mA nominal
- 0.5 to 4.5VDC output, 8 to 30VDC input, 20mA nominal
- 0 to 10VDC output, 12 to 30V input, 20mA nominal
- 0 to 3VDC output, 5VDC input, 20mA nominal
- 2.5 to 200mm (0.1 to 8in) measuring ranges
- ±0.15% of full scale output typical linearity error, ±0.25% max
- 0.025% of FSO resolution
- 300Hz nominal bandwidth
- IEC IP-67 environmental sealing
