Description
The Alliance Sensors Group LR series LVIT (Linear Variable Inductance Transducer) linear position sensor are contactless devices designed for factory automation and a variety of industrial and commercial applications. A compact design with superior performance, and excellent stroke-to-length ratio, the LR series sensors are ideal for industrial testing, laboratories and OEM applications.
The LR series sensors are offered in ranges from 1 to 18 inches (25 to 450mm). Operating from a variety of DC voltages, these sensors offer a choice of four analog outputs and include Alliance Sensors Group’s proprietary SenSet™ field recalibration feature. LR-19 products are available with axial cable or connector terminations, or with radial exiting cable or two swivel rod eye ends for easy installation.

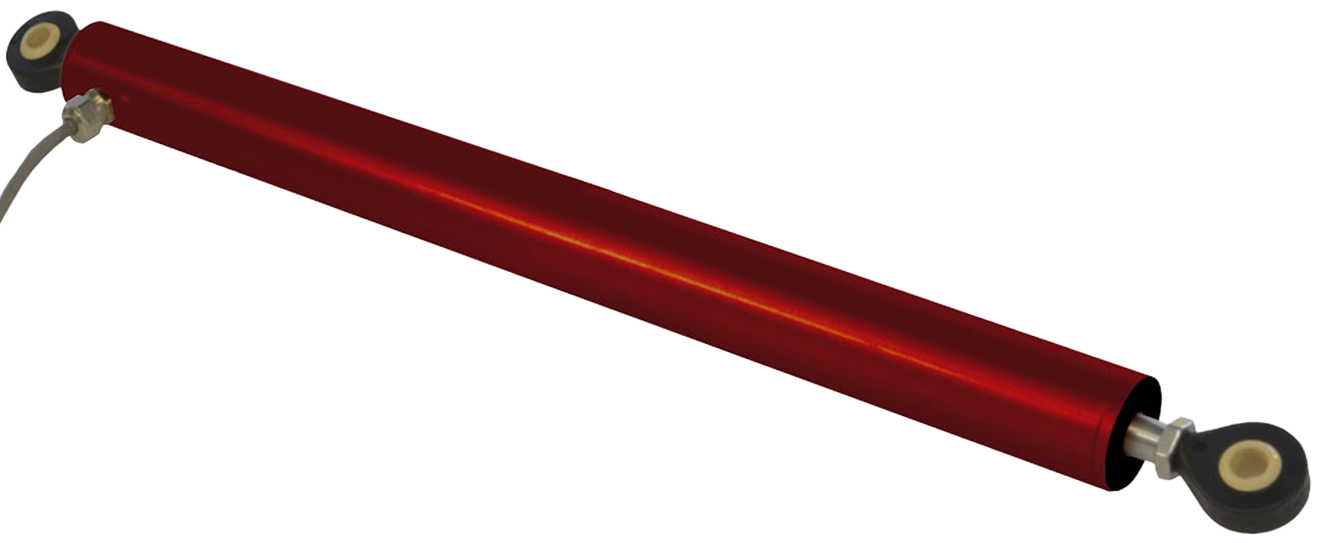

The LR series also offers a larger body version (27mm probe diameter) for applications which require a heavy-duty unit.
Applications
- PV Solar Cell Positioner
- Wind Energy Systems
- Packaging Machinery
- Motorsport Vehicles
- Automotive Testing
- Factory Automation
- OEM Test Standards
Технические характеристики
Features
- 4 analog I/Os:
- 0 to 5V output with 8 to 30V input, 35mA max
- 0.5 to 4.5V output with 8 to 30V input, 35mA max
- 0 to 10V output with 12 to 30V input, 35mA max
- 4-20mA (3-wire) output with 18 to 30V input, 60mA max
- 25 to 450mm (1 to 18in) full scale (nominal) measuring ranges
- ±0.15% of full scale output typical linearity error, ±0.25% max
- 0.025% of FSO resolution
- 300Hz update rate
- IEC IP-67 environmental sealing
