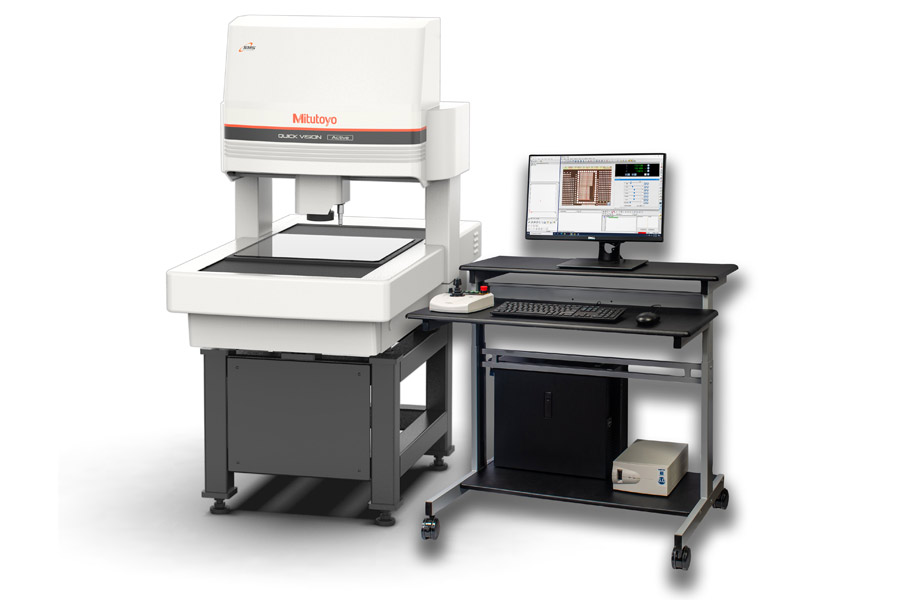

The Quick Vision Active Vision Measuring System combines the flexibility of multiple high-quality interchangeable zoom lenses with a high-resolution, high-speed CMOS camera for accurate 3D touchless measurements. Its edge detection capability and functions of the measurement software, QVPAK, enables the Quick Vision Active to surpass the conventional image of a standard compact vision measurement model.
- Automatic focus improves measurement throughput
- The QV Active features a Z-axis stroke range of 150-200mm in a compact model CNC System
- High-quality Mitutoyo developed zoom optics with interchangeable lenses provides workpiece measurement flexibility
- An optional touch probe delivers pinpoint measurements for complex dimensions to supplement 3D, non-contact measurements
- Programmable LED stage, coaxial and 4-quadrant ring light sources improves responsiveness and measurement throughput
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: | |
|---|
| 363-109-20 | QV-L202Z1L-D | 10″ / 250mm | 8″ / 200mm | 6″ / 150mm | 22lbs / 10kg | 342lbs / 155kgs | 30 x 22 x 33″ (767 x 570 x 845mm) |
| 363-110-20 | QV-L404Z1L-D | 16″ / 400mm | 16″ / 400mm | 8″ / 200mm | 44lbs / 20kg | 714lbs / 324kgs | 51 x 31 x 40″ (1303 x 776 x 1004mm) |
Технические характеристики
| Technology: | CNC VMM |
|---|
| Scale Resolution: | 0.0000039370′ / 0.00010mm |
|---|
| Environment: | 68°F
20°C |
|---|
| Camera Type: | 3MP Color CMOS |
|---|
| Field of View: | 0.0382 x 0.0303 — 0.5354 x 0.4252′ / 0.97 x 0.77 — 13.6 x 10.8mm |
|---|
| Zoom Type: | 8-Step Tube |
|---|
| Magnification: | 13x — 183x |
|---|
| Illumination System: | — |
|---|
| Touch Trigger Probe: | Optional |
|---|
| Color Lighting: | No |
|---|
| Optical 3D Scanning (PFF): | No |
|---|
| Laser Tracking Autofocus (TAF): | No |
|---|
| Vibration Stand: | Optional |
|---|
