These accessories a compatible with various Models PC-400, and PC-600, and Models PC-420, and PC-620.
Temperature controller:
The controller plugs into the socket on the back of the hot plate. It can be used to control or monitor the temperature of the hot plate. The temperature controller features a «PTFE» coated probe, which allows the controller to be used for more applications., and hot plate/stirrers have a space for a support rod accessory to be screwed into the base of the unit.

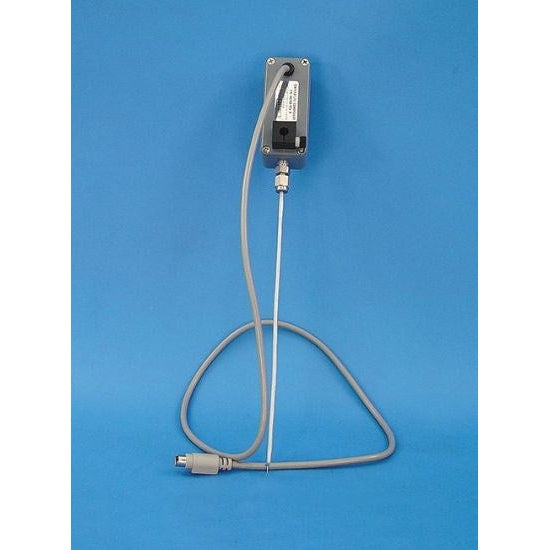

External temperature controller (Model 6795PR):
This temperature controller s designed to take the guesswork out of controlling liquid temperatures on the digital display of hotplates and stirring hotplates.
- Controls the temperature of liquids up to 200°C in vessels on top of the Pyroceram heated top of Pyroceram heated top
- Increases accuracy and repeatability by controlling liquid temperature not top plate temperature
- When in use, the controller icon on the display well be lit and the temperature control on the unit can set from 5 – 200°C.
- CAUTION: A 200°C setting when using 6795PR does not mean that the top plate is at 200°C. Top plate temperature could be as high as 550°C
Temperature probe support clamp:
The support clamp for clamp temperature probes is 11mm diameter x 165mm. The clamp has two openings, 9mm and 3.75mm, for holding probes. It is designed to be used with a boss heat clamp or standard right angle clamp.
Support rods:
The hotplates and hotplate stirrers have a space for a support rod accessory to be screwed into the base of the unit. These support rods are constructed from stainless steel and are available in three sizes.
- 7.95mm diameter x 304.8mm length
- 7.95mm diameter x 457mm length
- 2-piece, 7.95mm diameter x 228.6mm length
Compatibility:
Product Description Compatible Models EMS72351-21
Temperature controller
PC-400/420/600/620
EMS72351-22
Temperature controller for digital display hot plates & stirring hot plates
PC-400D, PC-420D,
PC-600D, PC-620D
EMS72351-12
304.8mm stainless steel support rod
PC-200/210/220
EMS72351-18
457.2mm stainless steel support rod
PC-400/410/4/305
EMS72351-25
Two 228.6mm stainless steel support rods that screw together
PC-400/410/420,
PC-400D-410D/420D,
PC-600D/610D/620D
EMS72351-30
Probe support clamp for temp controllers EMS72351-21 & EMS72351-22
All models
