The QL Series II is the latest and highest performance linear regulated power supply series from TTi. This power supply is truly linear with a very high resolution and very low noise. New features of the TP SII series include an enhanced auxiliary output with fully variable voltage and higher current capability and an LXI compliant LAN interface. Specifications Specifications Output ranges Range 1 — 0 to 35V, 0 to 3A
Range 2 — 0 to 15V, 0 to 5A
Range 3 — 0 to 35V, 0 to 500.0mA Total power 228W Setting resolution 1mV,0.1/1mA (depending on range) Setting accuracy Voltage — 0.03% ±5mV
Current 0.2% ±5mA/0.5mA Load regulation For any load change, at the output terminals, using remote sense, Voltage Line regulation Voltage Ripple and noise Typically Common Mode Noise Current Transient Response Temperature Coefficient Connectivity LAN, USB, RS-232, GPIB Dimensions 280x160x290mm Weight 10.5 kg

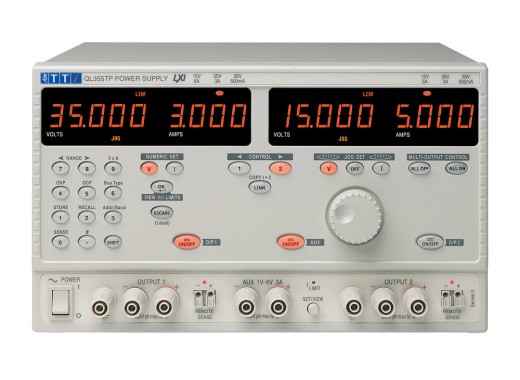

Aim-TTi QL355TP SII линейный тройной блок питания 228 Вт 35 В/5 А
277 875 ₽
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
