Description

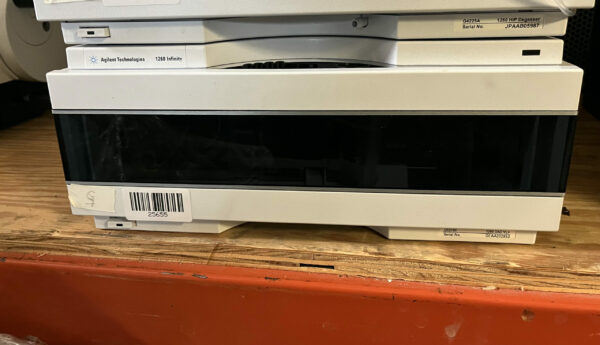

The Agilent 1260 Inifnity Series G1315C Diode Array Detector VL+ is designed for highest optical performance, GLP compliance and easy maintenance. 80 Hz data acquisition rate for fast LC applications. data recovery (DRC) feature provides data-never-lost insurance. RFID tags for all flow cells and UV-lamps provides traceable information about these assemblies. No loss in sensitivity for up to eight wavelengths simultaneous. Built-in temperature control for improved baseline stability.
Specifications:
Detection type: 1024-element photodiode array
Light source: Deuterium and tungsten lamps
Data rate: up to 80 Hz
Wavelength range: 190 – 950 nm
Short term noise (ASTM) Single and Multi-Wavelength: <, 0.7·10-5 AU at 254 and 750 nm
Drift:<, 0.9·10-3 AU/h at 254 nm
Linear absorbance range: >, 2 AU (5°) at 265 nm
Wavelength accuracy: ± 1 nm
Wavelength bunching: 1 – 400 nmProgrammable in steps of 1 nm
Slit width: 1, 2, 4 , 8, 16 nm
Diode width: <, 1 nm
Control and data evaluation: Agilent ChemStation for LC (32-bit)
Local Control: Agilent Instant Pilot (G4208A)
Analog outputs: Recorder/integrator: 100 mV or 1 V output range 0.001 – 2 AU, two outputs
