Description
Features:

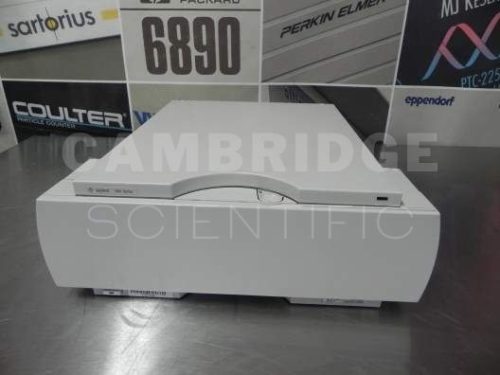

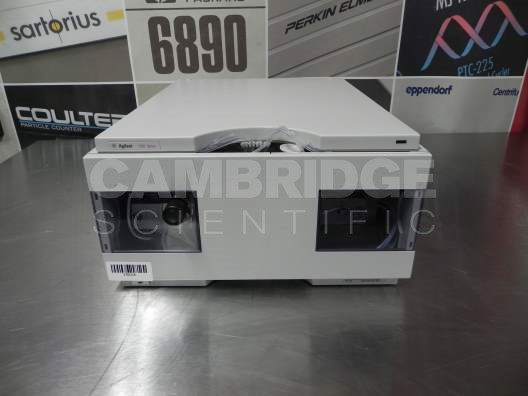

The Agilent 1200 Series G1312A Binary Pump is designed for top performance high-pressure mixing. This units reliable design keeps maintenance to a minimum by using electronically-controlled active inlet-valves for flow rates up to 5.0 mL/min. Floating pistons ensure the highest seal, low internal and external volumes of capillary connections, minimum bench space needed due to two dual-piston, in-series pumps in one housing.
Specifications:
- Weight: 15.5 kg (34 lbs)
- Dimensions: 7 x 13.5 x 17 in. (18 x 34.5 x 43.5 cm)
- Line voltage: 100 240 VAC, ±, 10%, Wide-ranging capability
- Line frequency: 50 or 60 Hz, ±, 5%
- Power consumption: 220 VA, 74 W / 253 BTU Maximum
- Ambient operating temperature: 455 C (41131 F)
- Ambient non-operating temperature: -4070 C (-4158 F)
- Humidity: <, 95%, at 2540 C (77104 F) Non-condensing
- Operating Altitude: Up to 2000 m (6500 ft)
- Non-operating altitude: Up to 4600 m (14950 ft) For storing the module
- Safety standards: IEC, CSA, UL, Installation Category II, Pollution Degree 2
