Description

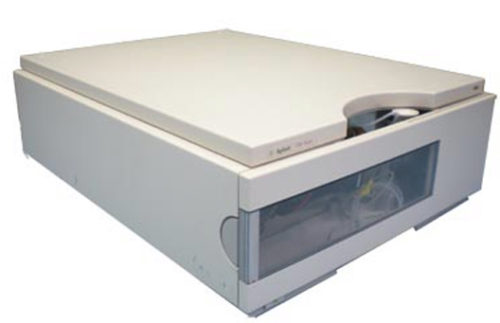

The Agilent 1100 ALS Thermostat, G1330 controls temperature for either HPLCs or fraction collectors. The ALS thermostat contains Peltier-controlled heat exchangers. A fan draws air from the area above the sample vial tray of the autosampler and is then blown through the fins of the cooling/heating module. There it is cooled or heated according to the temperature setting.
Specifications:
- Weight: 20.7 kg (45.6 lbs)
- Dimensions: 140 345 435 mm (5.5 13.5 17 inches)
- Line Voltage: 100 120 or 220 240 VAC, ±, 10 % Automatic selection
- Line Frequency: 50 or 60 Hz, ±, 5 %
- Power consumption Autosampler: 300 VA
- ALS Thermostat: 260 VA
