Description
Description:

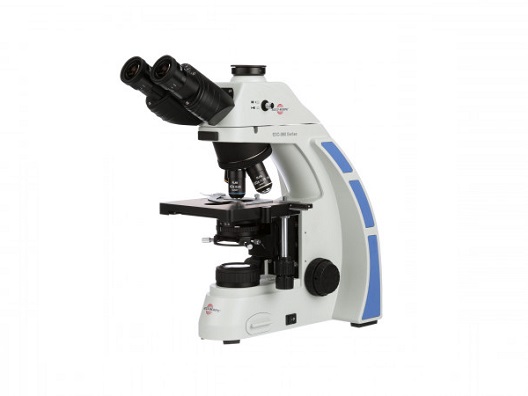

Accu-Scope»s new EXC-350 Series delivers a new level of optical performance, versatility and is built to last. With an enhanced, newly developed LED illumination system and our infinity plan objectives, the EXC-350 provides brighter, sharper and crisper images than ever before. The EXC-350 Series» modular design is compatible with many accessories for fluorescence, phase contrast and darkfield applications.
Features:
Optical System: Infinity optical system, f = 200mm, anti-mold.
Viewing Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm. Two-position light path selector: 100% eyepieces, 80% eyepieces/20% camera port.
Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
Objectives: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
Stage: Rackless Mechanical Stage, size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
Condenser: Abbe condenser 0.9 dry/1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm.
Stand: Cast alloy aluminum.
Illumination: 3-watt LED with variable intensity control, LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides, all metal gears, brass fine focus gear.
Accessories: Dust cover, immersion oil and instruction manual.
Certification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold
Warranty: 5-year limited warranty for parts, labor and electronic components, 1-year warranty on LED bulb
Microscope Dimensions (LWH): 294mm x 199mm x 397mm
Physical Weight: 24 lbs.
Shipping size: 22x22x11 inches
Shipping weight: 26 lbs.
