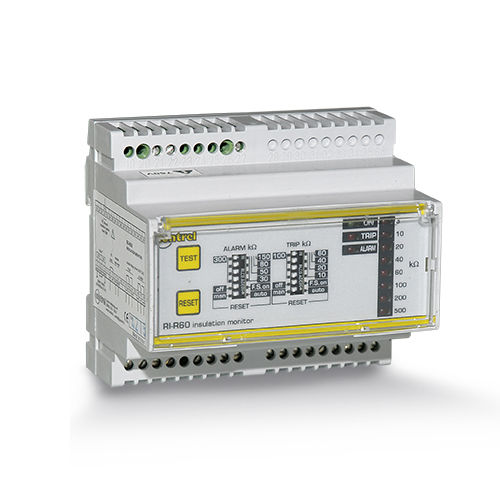

RI-R60 Insulation monitoring device up to 760 VAC. Trip and alarm threshold. Insulation monitoring devices for fault detection network up to 760 VAC Introduction Range RI Product name RI-R60 Product type Insulation monitoring device Application Production plant protection Motor protection Transformation lines protection Earthing system IT Technical characteristics Network voltage 500…760 VAC at 50…60 Hz Auxiliary supply 110…230 VAC 50/60Hz Power consumption 5 VA Type of measurement Network insulation resistance Intervention threshold Alarm: 30…300 kOhm Trip: 10…100 kOhm Response time
Технические характеристики
CharacteristicsOptionsfor AC networks
