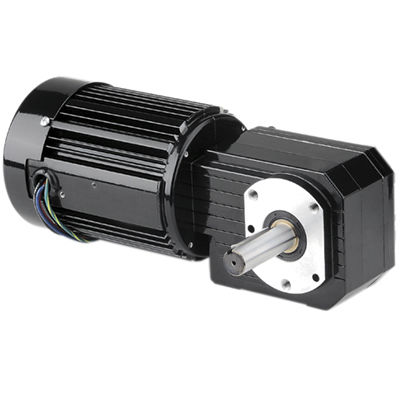

Metric 42R-GB Series AC Right Angle Gearmotor Application Information • Capacitor is not included, order with motor if required. • Mounting is via four tapped holes under the gearhead or three tapped holes in the face of the gearhead. • Die cast terminal box with terminal block installed. IP-44. Optional Accessories Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984] Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984] Capacitor, plastic box type, 7.5MFD 370V [Item 49401154] Die cast terminal box kit for our 42R-FX stock gearmotors [model 0985] — Use model 0986 instead Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986] STANDARD FEATURES • Metric mounting threads and metric drive shaft dimensions. • Totally enclosed IP-20 rating • Fan cooled for high output power • Class ‘B’ insulation system operated within Class ‘A’ limits to prolong winding and lubricant life • Aluminum center ring and endshields for high thermal efficiency and light weight • Unvented gearhousing. • Industrial lip type seals on motor and output shafts • Bearings throughout for increased radial load capacity and long life • Permanently lubricated gearing utilizing oil for long life • Hardened helical output gearing for quietness and high output torque • Bronze worm gear for high shock load capability • Hardened and ground worm gear for strength and long life
Технические характеристики
CharacteristicsMotor typeACTypeworm, helicalShaft orientationright anglePower50 W…100 WVoltage 230 VTorque1 — 5 NmProduct applicationsindustrialOther characteristicscompact, low-noise, efficiency, high load capacity
