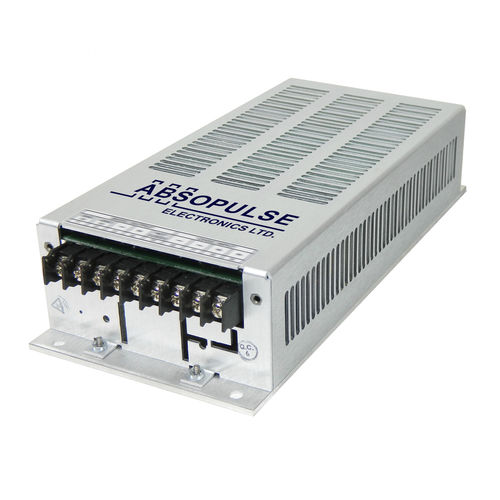

The HBC 200-F2 is a rugged, industrial quality AC/DC power supply uses field-proven topology to generate the required output power. It is a simplified version of the field proven OLC 53 series, with the same electrical performance but with fewer available options. Cooling is via baseplate to a heat-sinking surface and by natural convection. Full electronic protection, low component count, large design headroom, and the use of components with established reliability contribute to high MTBF. It is manufactured at our plant under strict quality control.
Технические характеристики
CharacteristicsTypeAC/DCOutputsingle-output, regulatedTechnologyswitchingApplicationsfor industrial applicationsOther characteristicshigh-performanceInput voltage
Max.: 230 V
Min.: 115 V
Output voltage
12 V, 24 V, 48 V, 125 V
Current
1.6 A, 4 A, 8 A, 16 A
Power
200 W
