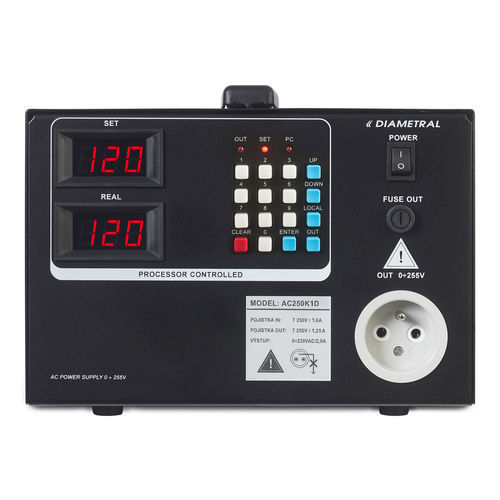

A proven series of AC voltage power supplies suitable for powering electrical AC devices in many fields of electrical engineering, electronics and education. The output voltage with a pure sine wave of 50 Hz is obtained by transforming the mains voltage 230V/50Hz with an isolation transformer. Control of the source is possible using the keyboard located on the front panel of the device, or using a personal computer through the D-Control software. This software program allows unlimited time and voltage dependent processes to be defined. Characteristics of laboratory AC power supplies Soft-start function. Output voltage separated from the mains supply. Output voltage changes in 1V steps. Control via keyboard. Control via RS232 by the D-Control program. User programming of processes depending on voltage and time. Large, readable, red LED displays. Sufficiently sized transformer for continuous power supply. Technical parameters Stabilization — NO Stability of the output voltage — according to the stability of the mains Stability of the output frequency — according to the stability of the mains Voltage regulation step — 1 V Control — keyboard or data via RS232 interface Voltage meter — 3 places LED Resolution — 1 V Range — 0 ÷ 290 V Accuracy of the measuring device — 2.5% of the range Mains fuse — T 250 V / 1,6 A Output fuse — T 250 V / 1,25 A Length of the supply wire — 2 m Device color — black Dimensions in mm (H, W, D) — 172 x 244 x 282 Weight — approx. 9.2 kg Warranty — 24 months Soft start The source output is activated when the AC source is switched on after the test has been performed.
Технические характеристики
CharacteristicsTypeAC/ACMountingtabletopSecondary functionmeasuring deviceApplicationslaboratoryOther characteristicsrobustInput voltage
230 V
Output voltage
Min.: 0 V
Max.: 255 V
Current
1 A
Power
160 W
Output frequency
50 Hz
