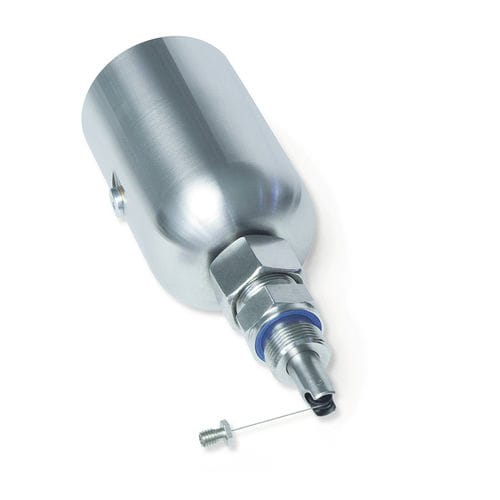

Position sensor for hydraulic cylinders for lateral mounting The SGH10 wire-actuated encoder measures the absolute direct cylinder stroke in a hydraulic cylinder. The new measuring system eliminates costly boring of the piston. As a result, integration costs are reduced compared to other measuring systems and a possible weakening of the piston is avoided effectively. The highlight of the SGH10L: Thanks to its unique lateral installation, the SGH10L can also be used in almost unsolvable applications, regardless of whether for applications in which no stoke lost can be accepted, extremely small piston diameters or in the case of cylinders with mechanical end position cushioning. Profile SGH10L: — Measuring range 0 … 1000 mm (39.37 inches) — almost no stoke lost thanks to lateral mounting — Absolute measuring system — CANopen interface, analog: Current and voltage — Operating voltage 9 … 32 VDC — Pressure-resistant up to 350 bar, pressure peaks up to 450 bar — High degree of flexibility, adjustable to all measuring lengths thanks to teach-in — High electro-magnetic compatibility — High shock and vibration resistance — With PURE.MOBILE technology Mechanical data Feature — Technical data — Additional information Housing — stainless Steel — V4A housing. 1.4404 uncoated — Steel — St housing. 1.7225 not coated seal — HNBR — Sensor — Viton — Screw-in connector housing V4A — NBR — Screw-in connector housing St Wire design — e0.45 mm — Steel rope (stainless) Extension force — 22 N — Accélération — £10 m/s2 — Weight — ‘2.1 kg — V4A housing without spacer tube — ‘2 kg — St housing without spacer tube
Технические характеристики
CharacteristicsTypeabsoluteOutput signalanalog, CANopenMaterialstainless steelProtection levelruggedOther characteristicscompact
