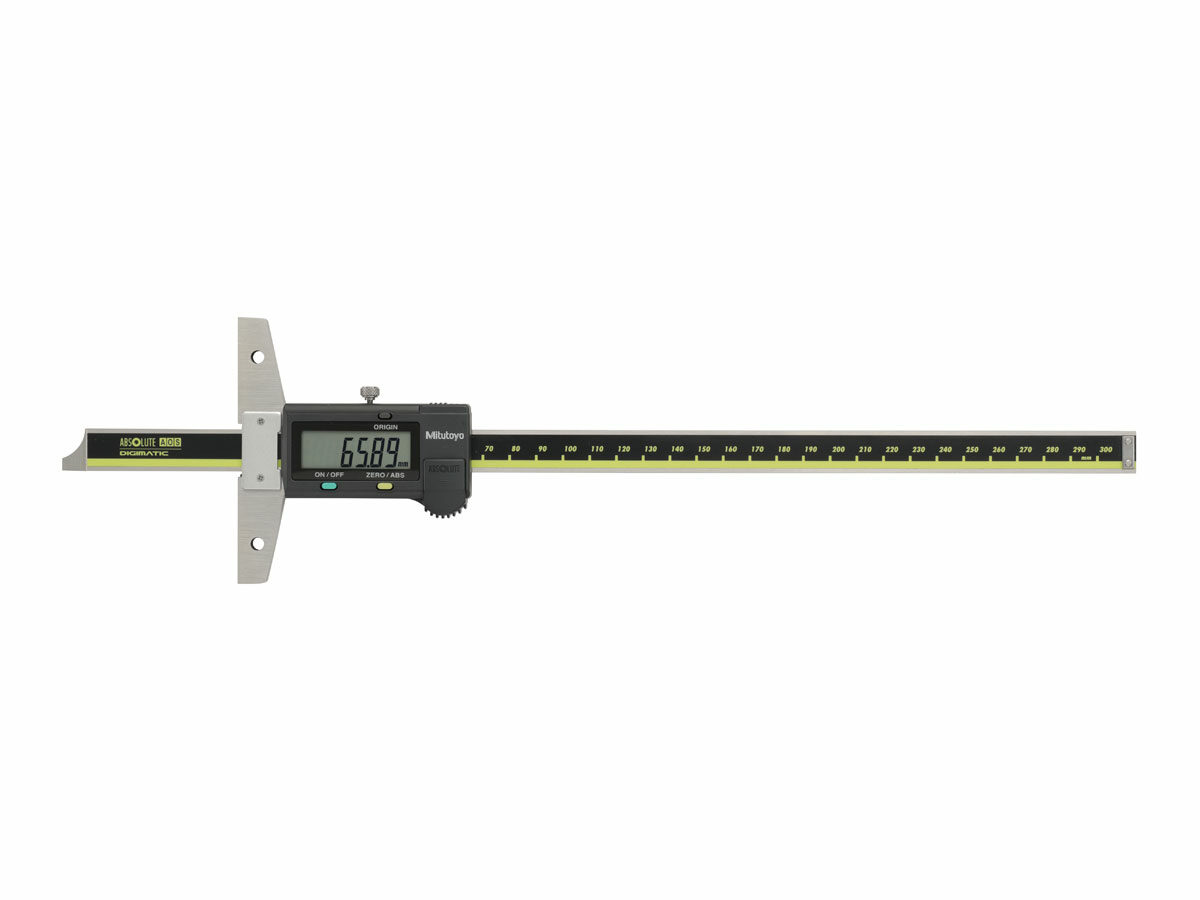

ABSOLUTE Digimatic Depth Gage

The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The depth gage is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.

Available in Metric and Inch/Metric models
Optional wider extension bases are available (up to 450mm range models)
Convenient mounting holes included on the base for repeatable accuracy
Keeps track of the origin point for the life of the battery
SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Constructed of hardened stainless steel for better durability and longevity
IP67 protection eliminates dust ingress, protects against temporary water submersion, permits use in environments exposed to cutting oil, dust, etc.
Unnecessary to wipe or clean the scale
Supplied with a fitted plastic case

Order No.:	Product Image:	Units:	Length Standard:	Battery Life:	IP Rating:	Range:	Resolution:	Accuracy:	Mass:	Optional Accessories:

Order No.:

571-201-30		Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 5 years under normal use	—	0-150mm	0.01mm	±0.02mm	192g	—
571-202-30	—	Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 5 years under normal use	—	0-200mm	0.01mm	±0.02mm	212g	—
571-203-30		Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 5 years under normal use	—	0-300mm	0.01mm	±0.03mm	310g	—
571-204-10	—	Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-450mm	0.01mm	±0.05mm	1270g	—
571-205-10	—	Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-600mm	0.01mm	±0.05mm	1400g	—
571-206-10	—	Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-750mm	0.01mm	±0.06mm	1530g	—
571-207-10	—	Metric	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-1000mm	0.01mm	±0.07mm	1760g	—
571-211-30		Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 5 years under normal use	—	0-150mm / 0-6′	0.01mm / 0.0005′	±0.02mm / ±.001′	192g	—
571-212-30	—	Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 5 years under normal use	—	0-200mm / 0-8′	0.01mm / 0.0005′	±0.02mm / ±.001′	212g	—
571-214-10	—	Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-450mm / 0-18′	0.01mm / 0.0005′	±0.05mm / ±.002′	1270g	—
571-215-10	—	Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-600mm / 0-24′	0.01mm / 0.0005′	±0.05mm / ±.002′	1400g	—
571-216-10		Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-750mm / 0-30′	0.01mm / 0.0005′	±0.06mm / ±.0025′	1530g	—
571-217-10	—	Metric, Inch	ABSOLUTE electrostatic capacitance type linear encoder	Approx. 3 years under normal use	—	0-1000mm / 0-40′	0.01mm / 0.0005′	±0.07mm / ±.0025′	1760g	—
571-251-20	—	Metric	ABSOLUTE magnetic induction type linear encoder	Approx. 5 years under normal use	IP67	0-150mm	0.01mm	±0.02mm	199g	—
571-252-20	—	Metric	ABSOLUTE magnetic induction type linear encoder	Approx. 5 years under normal use	IP67	0-200mm	0.01mm	±0.02mm	219g	—
571-261-20	—	Metric, Inch	ABSOLUTE magnetic induction type linear encoder	Approx. 5 years under normal use	IP67	0-150mm / 0-6′	0.01mm / 0.0005′	±0.02mm / ±.001′	199g	—
571-262-20	—	Metric, Inch	ABSOLUTE magnetic induction type linear encoder	Approx. 5 years under normal use	IP67	0-200mm / 0-8′	0.01mm / 0.0005′	±0.02mm / ±.001′	219g	—
571-263-10	—	Metric, Inch	ABSOLUTE magnetic induction type linear encoder	Approx. 5 years under normal use	IP67	0-300mm / 0-12′	0.01mm / 0.0005′	±0.03mm / ±.0015′	320g	—

571-201-30
571-202-30
571-203-30
571-204-10
571-205-10
571-206-10
571-207-10
571-211-30
571-212-30
571-214-10
571-215-10
571-216-10
571-217-10
571-251-20
571-252-20
571-261-20
571-262-20
571-263-10

Технические характеристики

Technology:	Digimatic
Max Response Speed:	Unlimited
Display:	LCD
Battery:	SR44 (1 pc.) 938882
SPC Output:	Yes
Repeatability:	0.01mm
