Additional Features:
- 200 ns Timing Resolution
- 2 Channel Outputs
- 6 Amps Per Channel
- Input module-front and rear trigger
- Easy Programming Interface
- Integrated Bridgewire Resistance Measurement
- Safety Interlocks and Keyed Front Panel Interface

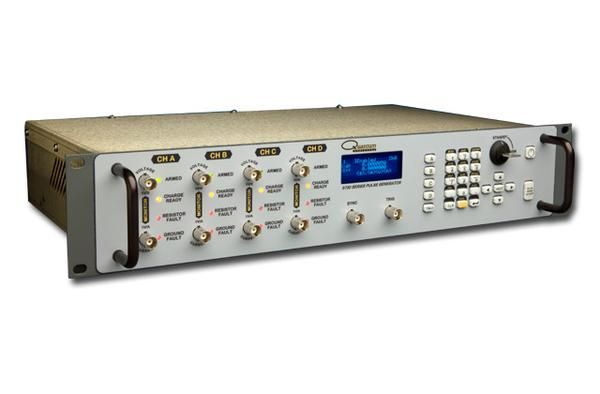

The Model 9732 is designed for airbag and pyrotechnic initiator testing and represents the latest in current pulse generating capabilities with compelling features that provide users with time-saving characteristics of adjustability, simple operation and programmability. The 9732 comes in a 19” 2U form factor as a 2 channel model with current sensing and resistance measurement capabilities. This unit is ideal for applications that require a high level of accuracy and repeatability.
High functionality, safety, and a rapid return-on-investment are the hallmarks of this new reset for pyrotechnic initiators. The Model 9730 provides multiple ring channels: all-re, no-re, resistance measurement, DC current, capacitor discharge, Bruceton, Neyer, and high current. The performance and advanced features of the 9730 current pulse generator make it ideal for applications such as air bag deployment testing (squib detonation) or igniter deployment that can be done reliably, safely and with repeatability.
Технические характеристики
| Manufacturer | Quantum Composers |
|---|---|
| Condition | New |
