Additional Features:
- 200 ns Timing Steps
- Memory Storage: 12 slots
- Up to 25 amps per Channel
- 4 Independent Channel Outputs
- Benchtop Design
- Easy Programming Interface
- TTL Sync output to T0
- Safety Interlock

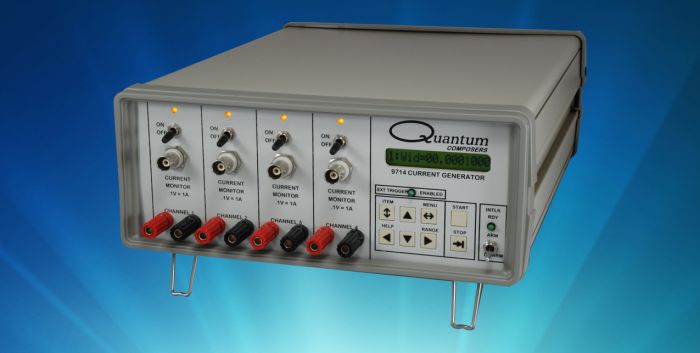

The 9714 Current Pulse Generator is an ideal fire set for airbag squib, detonator and pyrotechnics inititor testing. The instrument provides adjustable current signals up to 25 amps. The unit comes with 4 digitally controlled load resistant independent outputs. Output pulse widths and delays are unique to each channel and can be precisely controlled from 0.1 to 100 ms in 200 ns steps.
The 9714 Current Pulse Generator also provides a TTL Sync output to T0 – particularly useful as a reference source/trigger for cameras or other equipment.
Технические характеристики
| Manufacturer | Quantum Composers |
|---|---|
| Condition | New |
