| Remote interface package: Includes IEEE-488, RS232-C, Parallel & VICL ports |
Features:
- Tests to UL, CSA, IEC & TUV Specifications
- Up to 5KVAC with 35mA
- 5KVDC standard, 7KVDC & 10KVDC optional
- Insulation resistance to 500GΩ
- Continuity down to .001Ω
- Real, apparent & total current sense modes
- Leakage current measurement down to 1nA
- IF-4 interface option includes GPIB, RS-232, printer port & HV scanner control port
- Selectable arc detection
- “Ramp Hi-Dwell Low” current limits
- Safety Fault Interrupt (SFI)SM circuit
- CE mark certified
- Password protected 40 position test sequence

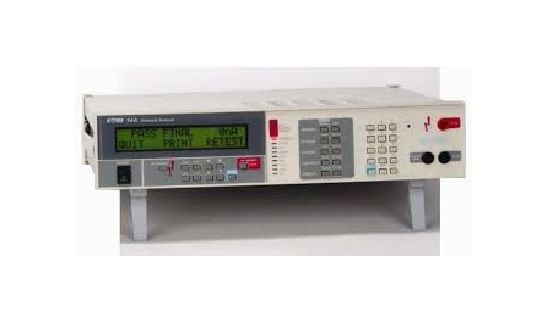

The Vitrek 944i delivers top performance and versatility for manufacturing test, product safety engineering, component evaluation, as well as research and development applications. You»ll find that the multi-function 944i is loaded with features that even the larger more expensive dedicated testers don»t offer. Powerful features including automatic calibration, built-in diagnostics, internal “watchdog” safety monitor, user memory for up to 40 test routines, arc detection and available interface package with IEEE-488.2, RS-232 and direct test results printout capability.
Технические характеристики
| Manufacturer | Vitrek |
|---|---|
| Condition | Used |
