Additional Features:
- Simultaneous Maximum Sampling Rate/ch: 100 MSa/s
- One ch. only max. sampling rate: 100 MSa/s
- Max. Single Shot bandwidth: 300 MHz
- Max. Record Length: 1000000 pt/sec
- Vertical Sensitivity: 2 mV/div to 5 V/div
- Number of Bits: 8 bits
- Input Impedance: 1 M Ω
- Input Impedance (alternate): 50 Ω
- Input Coupling: AC,DC,GND
- Maximum Input Voltage: 250 Vrms
- Maximum Input#2 (for Impedance #2): 5 Vrms
- Main time base: 1 ns/div-1000 s/div
- Timebase accuracy: 0.002 %
- Trigger Source: External,Internal
- Trigger Modes: Auto, Drop, Logic, Normal, Single, Stop, Width
- Minimum Trigger Holdoff: 25 ns
- Trigger Sensitivity: 0.5 mV
- Display Type: CRT Monochrome
- Display Size: 22.86 cm
- Display modes: Infinite, Normal, Persistence, X/Y
- User Interface: Proprietary
- Ports to Peripheral Devices: GPIB, RS232
- Input Power: Universal (Auto Sense and Switch)

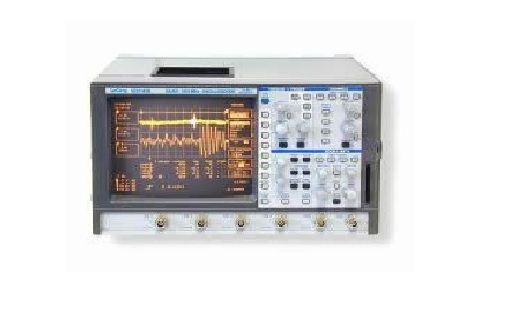

The LeCroy 9314L oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The LeCroy 9314L oscilloscope»s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Технические характеристики
| Manufacturer | LeCroy |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 300 MHz |
| Record Length | 1 MPts |
| Sampling Rate | 100 MS/s |
