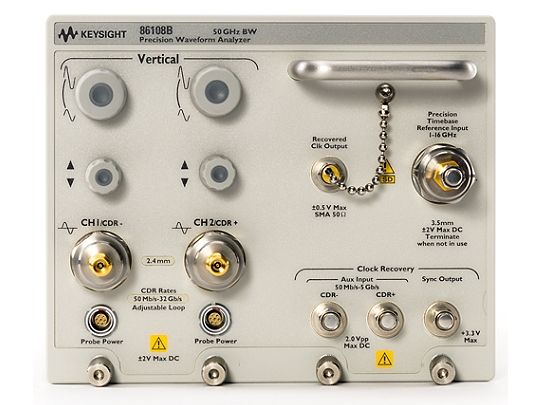

86108B Анализатор Agilent Keysight HP

Features:

• High bandwidth (50 GHz or 35 GHz models), ultra-low residual jitter, low noise receiver
• 2 Channels
• Integrated precision timebase provides &lt, 50 fs residual jitter (typical)
• Integrated hardware clock recovery with continuous data rate coverage from 50 Mb/s to 32 Gb/s
• Adjustable clock recovery loop bandwidth (to 20 MHz) and peaking

Specifications:

• Type/Bandwidth: 50GHz Elect
• Channels: 2CH
• Type: Electrical Mod
• Bandwidth: 50GHz

Accuracy and ease-of-use for high-speed digital communications signals to 32 Gbps. The 86108B Precision Waveform Analyzer, engineered for design and validation engineers faced with the difficult task of accurately characterizing the TRUE performance of their designs, is a plug-in module used with the 86100D DCA-X and 86100C DCA-J mainframes.

Технические характеристики
