Additional Features:
- Frequency range: 0.01 to 20 GHz
- Output power without an attenuator: –15 dBm (–20 dBm typical)
- Output power with an attenuator: –120 dBm
- Output power with an electronic attenuator: –140 dBm
- Ultra-low SSB phase noise and spurious
- +17 dBm guaranteed leveled power to 20 GHz
- <,5 ms switching time for <,100 MHz sweep steps
- Digital frequency sweep and digital power sweep
- Wide dynamic range with accurate output levels
- Intuitive, menu-driven front panel
- Fast analog sweep
- External FM, locked or unlocked
- External AM, log or linear
- Internal pulse generator with swept delay capability for moving target simulation
- Flexible pulse triggering including free-run, delayed, gated, and composite
- 0 to 90% AM, log or linear, over DC to 100 kHz rates
- Four FM modes for up to 10 MHz at 8 MHz rates or 100 MHz deviation at 100 Hz rates
- Internal AM, FM, and ΦM generators, each with 7 modulating waveforms

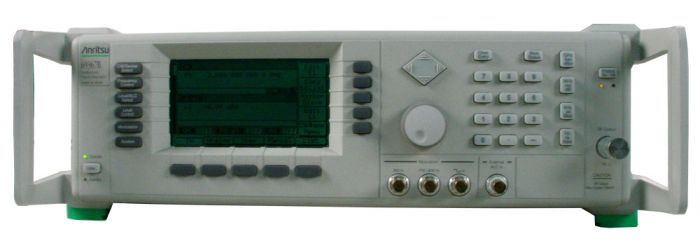

The Anritsu 69347B is the ultimate in full-function signal generation. The 69347B provides all the features of the other families along with comprehensive, high-performance modulation for signal simulation applications.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 20 GHz |
