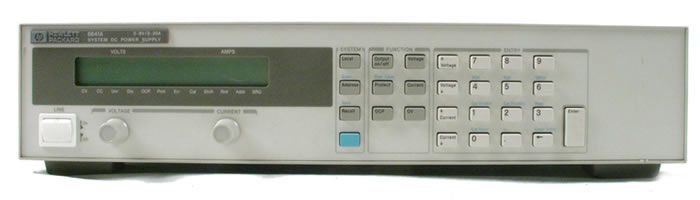

6641A Источник питания постоянного тока Agilent

6641A — это источник питания постоянного тока мощностью 200 Вт, 8 В, 20 А от компании Agilent. Обеспечивает постоянное напряжение и ток для тестирования, проектирования и устранения неполадок в электрических и электронных схемах. Приложения включают Burn In, QA, ATE, Research, Design и Education, и это лишь некоторые из них.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: 6641A Agilent DC Power Supply TME арт.: 6641A Agilent DC Power Supply

Источники питания и нагрузки

Additional Features:

Voltage: 0-8V
Current: 0-20A
Power: 200W
Auto-parallel up to three units
Outputs can be connected in parallel or in series
Programmable over-voltage and over-current protection
Over-temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self-test occurs at power-on from an GPIB command
User definable power-on state
VXI plug & play drivers
Increase test throughput with fast up and down programming time
Protect valuable assemblies with fast protection features
Proven reliability
Low ripple and noise

Programming Accuracy at 25°C ±5°C

Voltage 0.06% + 5 mV
Current 0.15% + 26 mA

Ripple & Noise (20 Hz — 20 MHz)

Voltage rms: 300 µV
Voltage peak-to-peak: 3 mV
Current rms: 10 mA

The Agilent 6641A 200W, linear-regulated DC power supply is designed to maximize the throughput of DUTs through the manufacturing test process with fast up and down programming time.

Programming of the DC output and the protection features can be done either from the front panel or using industry standard SCPI commands, via the GPIB. Using the serial link, up to 16 power supplies can be connected through one GPIB address. Test system integration can be further simplified be using the VXIPlug&Play drivers. The output voltage and current can also be controlled with analog signals. This is helpful for certain types of noisy environments, and also immediate reactions to process changes.

Lab bench use is enhanced by the fan speed control, which helps to minimize the acoustic noise.

This series of 200 W linear-regulated dc power supplies is designed to maximize the throughput of DUTs through the manufacturing test process with fast up and down programming time.

Valuable assemblies can be destroyed by a minor component failure that can allow a surge of voltage or current to flow to the DUT. Fast protection features, including fast crowbar, mode crossover protection, and the ability to connect the protection circuitry of multiple power supplies can increase production yield.

Технические характеристики

Manufacturer	Agilent, HP, Keysight
Condition	Used
Current	20 A
Voltage	8 V
Power	200 W
