Features:
- 20 A, 80 V, or 100 W max. — Dual Channel
- Compatibility between 6310 and 6310A
- Synchronization with multiple loads
- Flexible CC, CR, CP and CV operation modes
- Dynamic loading with speeds up to 20kHz
- Fast response of 0.32mA/s — 10A/s slew rate
- Minimum input resistance allows the load to sink high current at low voltages
- Real time power supply load transient response simulation and output measurements
- User programmable 100 sequences. Front panel input status for user-friendly operation
- High/Low limits of testing parameters to test GO/NG
- Digital I/O control
- Over current protection (OCP) testing function
- 16-bit precision voltage and current measurement with dual-range
- Remote sensing capability
- Short circuit test
- Self-test at power-on
- Full Protection: OV, OC, OP, OT and reverse protection
- USB, GPIB & RS-232 interface (mainframe dependent)
Specifications:
- 100 W
- 80 V
- 20 A

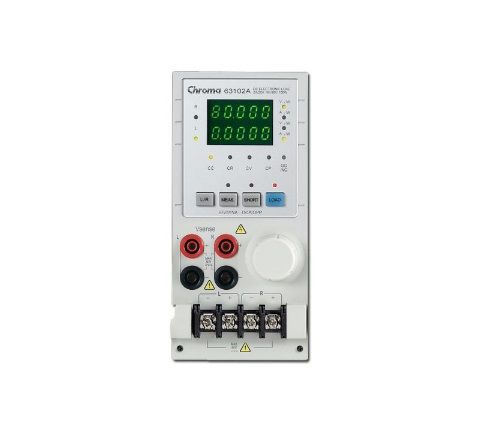

The 63102A specifications are 20 amps, 80 volts and 100 Watts max. x2 channels. The load can be operated in constant current, constant voltage, constant power and constant resistance and may be placed in parallel for increased current and power.
Технические характеристики
| Manufacturer | Chroma |
|---|---|
| Condition | Used |
| Current | 20 A |
| Type | Module |
| Voltage | 80 V |
| Power | 100 W |
