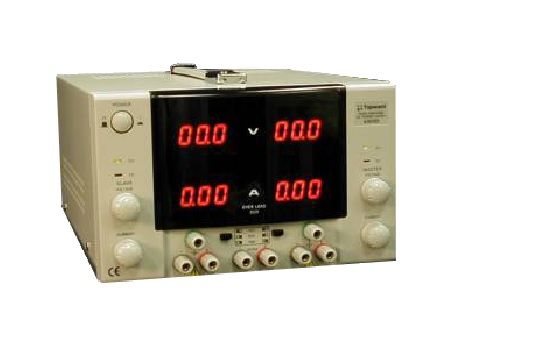

6303D-10 Источник питания постоянного тока, направленный вверх

6303D-10 — это блок питания постоянного тока мощностью 205 Вт, 30 В, 3 А от Topward. Обеспечивает постоянное напряжение и ток для тестирования, проектирования и устранения неполадок в электрических и электронных схемах. Приложения включают Burn In, QA, ATE, Research, Design и Education, и это лишь некоторые из них.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: 6303D-10 Topward DC Power Supply TME арт.: 6303D-10 Topward DC Power Supply

Источники питания и нагрузки

Additional Features:

Output Voltage: 0-30V x 2
Output Current: 0-3A x 2
5V/5A constant-voltage output
10-turn Voltage control
Twin power output with tracking function for automatic selection of parallel or serial connection
Short-circuit protection against external input while providing constant voltage and constant current
Allows serial or parallel connection with the same power supply model

5V Fixed Operation

Load Regulation: &lt, 10mV
Line Regulation: &lt, 5mV
Ripple & Noise: &lt, 2mVrms
Voltage Accuracy: 5V + 0.25V
Output Current: 5A

Constant Voltage Characteristics

Load Regulation: + 0.01% + 2 mV
Line Regulation: + 0.01% + 2 mV
Ripple & Noise: (&lt, 200W) &lt, 0.5mVrms
Ripple & Noise: (&gt, 200W) &lt, 1mVrms

Constant Current Characteristics

Load Regulation: (&lt,200W) &lt, 10mA
Load Regulation: (&gt,200W) &lt, 15mA
Line Regulation: + 0.01% + 2mA
Ripple & Noise: (&lt, 200W) &lt, 1mArms
Ripple & Noise: (&gt, 200W) &lt, 3mArms

Display Accuracy

Digital Display (D): &lt, 0.1% + 2d

Programming Speed

Rise Time (No Load): &lt, 100mS, (Load): &lt, 200mS (&lt,6A), &lt, 500mS (&lt,10A), &lt, 1S(&gt, 10A)
Fall Time (No Load): &lt, 2.5S, (Load): &lt, 250mS

Output Impedance: &lt, 2m? + 2 µH
Recovery Time: &lt, 100 µS to within 0.1% of set voltage (50% to 100% load change)

Functions

Series Connection: Different models can be connected in series (&lt, 240V)
Parallel Connection: Same models can be connected in parallel (&lt, 24A)

Tracking Operation

Tracking Error: + 0.2% + 10mV
Series Regulation: + 0.3% + 10mV

Operation Mode

Independent: Two independent outputs and 5V fixed output, Output from 0 to rating voltage and 0 to rating ampere
Serial: Output from 0 to + rating voltage at rating ampere, Output from 0 to double rating voltage at rating ampere
Parallel: Output from 0 to double rating current at voltage rating
Power Source: ACV 100/120/220/240 + 10%, 50/60 Hz

The Topward 6303D-10 is a 205 W, 30V/3A x 2, 5V/5A DC Power Supply with a 10-turn Voltage Control Option.

Технические характеристики

Manufacturer	Topward
Condition	Used
Current	3 A
Voltage	30 V
Power	205 W
