Additional Features:
- Volts: 0-600V
- Current: 0-8.5A
- Power: 5000W
- Precision V & I measurements
- Auto I-V program: 100 I-V curves & Dwell time 1-15,000s
- Static & dynamic MPPT efficiency test (accumulated energy methods)
- Data recorded via softpanel
- Standard USB/RS232/RS485 interface
- Optional GPIB/Ethernet interface
- Real time analysis of PV inverter»s MPPT tracking via softpanel
- Real world weather simulation fast I-V curve update rate: 1s
- Support up to six-channel SAS control for multi-MPPT testing
- Build-in dynamic MPPT test profile of EN50530, Sandia, CGC/GF004 and NB/T 32004

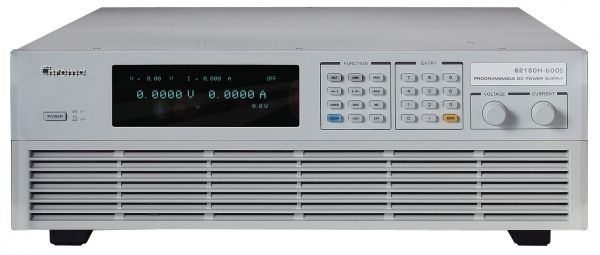

The 62050-600S provides an industry leading power density in a small 3U high package. The solar array simulator is highly stable and has a fast transient response design, which are both advantageos to MPPT performance evaluation on PV inverter devices.
The 62000H-S Series have many unique advantages including high speed & precision digitizing measurement circuits with a 100 kHz A/D, 25 kHz D/A controlled I-V curve and a digital filter mechanism. It can simulate an I-V curve accurately and response the mains ripple effect from the PV inverter. In addition, the built-in EN50530/Sandia SAS I-V model in the standalone unit can easily program the Voc, Isc, Vmp, and Imp parameters for I-V curve simulation, without a PC controller.
Технические характеристики
| Manufacturer | Chroma |
|---|---|
| Condition | New |
| Current | 8.5 A |
| Voltage | 600 V |
| Power | 5 kW |
