Additional Features:
- E20/20 TDR Avionics Kit
- Ranges: From 0-10ft (0-2m) to 20,000ft (5Km)
- No dead zones on any range setting
- Range Zoom on Cursor
- Impedance zoom using Z Scale
- Cursor reading down to ±½ inch (±8mm)
- Cable List with up to 64 cable types
- BNC and RJ45 connectors standard
- Setup Wizard — step-by-step start up assistance
- Context sensitive help
- Cell phone style alpha-numeric entry pad
- Keypad LED indicators for active function
- Cable toning — coax or wire pairs
- Stores 32 traces with name, date & time
- Rechargeable NiMH AA cells (included)
- ETDR PC Vision software (included)
- Kit Case is ATA rated and MIL-STD tested
Benefits:
- Test coax, twisted pairs, or single wires using same TDR. Wireto-wire or wire to airframe
- Accurate and clear trace indication of faults
- Secure, but convenient accessory access
- More advanced features to aid troubleshooting Save, upload, print or email TDR»s traces Find faults other TDRs miss
- Clear wiring trouble more quickly with less testing Customize, upload, and download Cable Lists, PC-to-TDR Saved traces are also saved setups for recall
- Noise detection and noise filtering Locate coax or pairs quickly using Tone Function Setup Wizard makes starting use easy and helps train new users
- “Belt Friendly” TDR size and only 2.2 lbs (1Kg)
Kit Includes:
- 6021-5154 E20/20B Network TDR with BNC and RJ-45 connectors and aviation cable list.
- Hard carrying case with anti-FOD layout, belt case, AC power adapter, 8 AA NiMH cells (installed), USB Cable.
- Test leads: BNC(m)-to-BNC(f) 6ft (2m) 50 Ohm cable, BNC-to-alligator clips, BNC-to-pins, sizes 12, 16, 20, and 22, BNC-to-sockets, sizes 12, 16, 20, and 22, RJ-45-to-RJ-45 6ft (2m) Cat 5 (ISO class D) cable
- Basic Guide, Quick Start Guide, CD-ROM with ETDR PC Vision software, Operator Manual, Training Presentation, and Application Notes

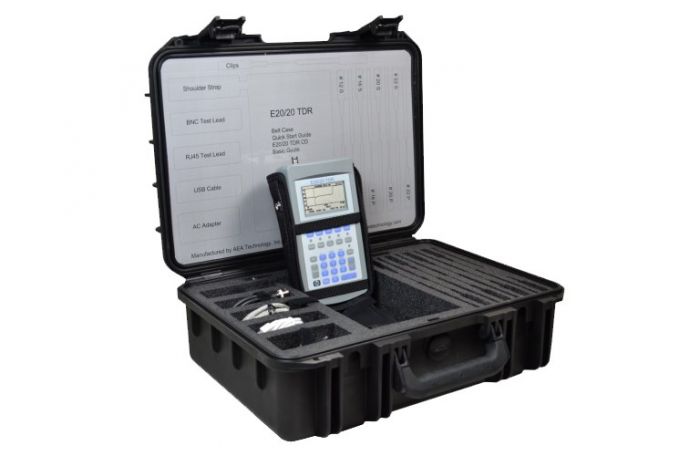

The AEA E20/20 TDR Avionics Kit is designed specifically for testing and fault locating on aircraft wiring. The Step TDR is ideal for troubleshooting all types of coax, twisted pairs, single-wires in a harness, and aircraft power cables. Use “Step TDR” technology»s amazingly accurate display and locating ability to save time and money. The kit includes connection adapters for mating with aircraft wiring harness style connectors making testing fast and convenient. Additionally, the TDR, manuals, PC software and accessories are all in a rugged anti-FOD carrying case designed for flight line and aircraft use. ETDR PC Vision software can upload, save, and print test results, and customize the TDR»s cable list for specific aircraft as desired.
Технические характеристики
| Manufacturer | AEA Technology |
|---|---|
| Condition | New |
