| Ultra-high-stability OCXO timebase |
| 6 GHz microwave input |
| Pulse Microwave Measurements |
| Channel 3 input front — Type N |
| Move Channel 3 input to rear panel — SMA |
| GPIB Interface |
Additional Features:
- Two 350 MHz input channels, plus optional third channel (6 GHz or 15 GHz)
- 12 digits/second resolution, 100 psec time interval resolution
- LXI-C/LAN, USB, GPIB
- Built-in math analysis and color, graphical display (trend and histogram)
- Optional: Lithium Ion Battery

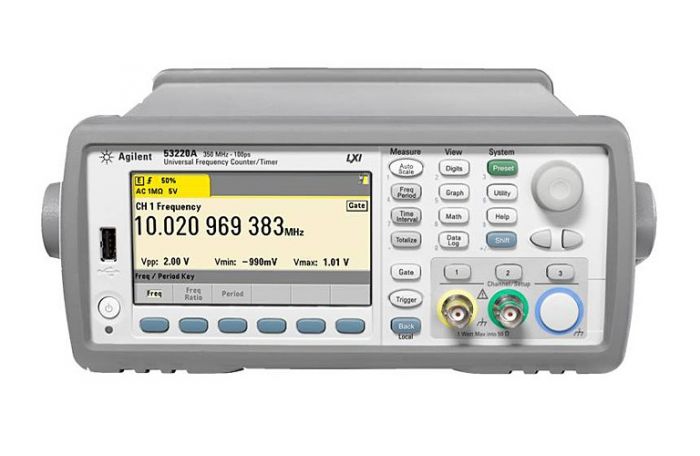

The 53220A 350 MHz universal frequency counter/timer is a two-channel frequency counter with the ability to make all the frequency and time interval measurements you depend on. An optional microwave channel can be added to measure 6 or 15 GHz.
Frequency counters are depended on in R&D and in manufacturing for the fastest, most accurate frequency and time interval measurements. The 53220A universal frequency counter/timer expands on this expectation to provide you with the most information, connectivity and new measurement capabilities, while building on the speed and accuracy you»ve depended on with Agilent»s decades of time and frequency measurement expertise.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 350 MHz |
